Telecommunications - Hands Free Module (HFM)

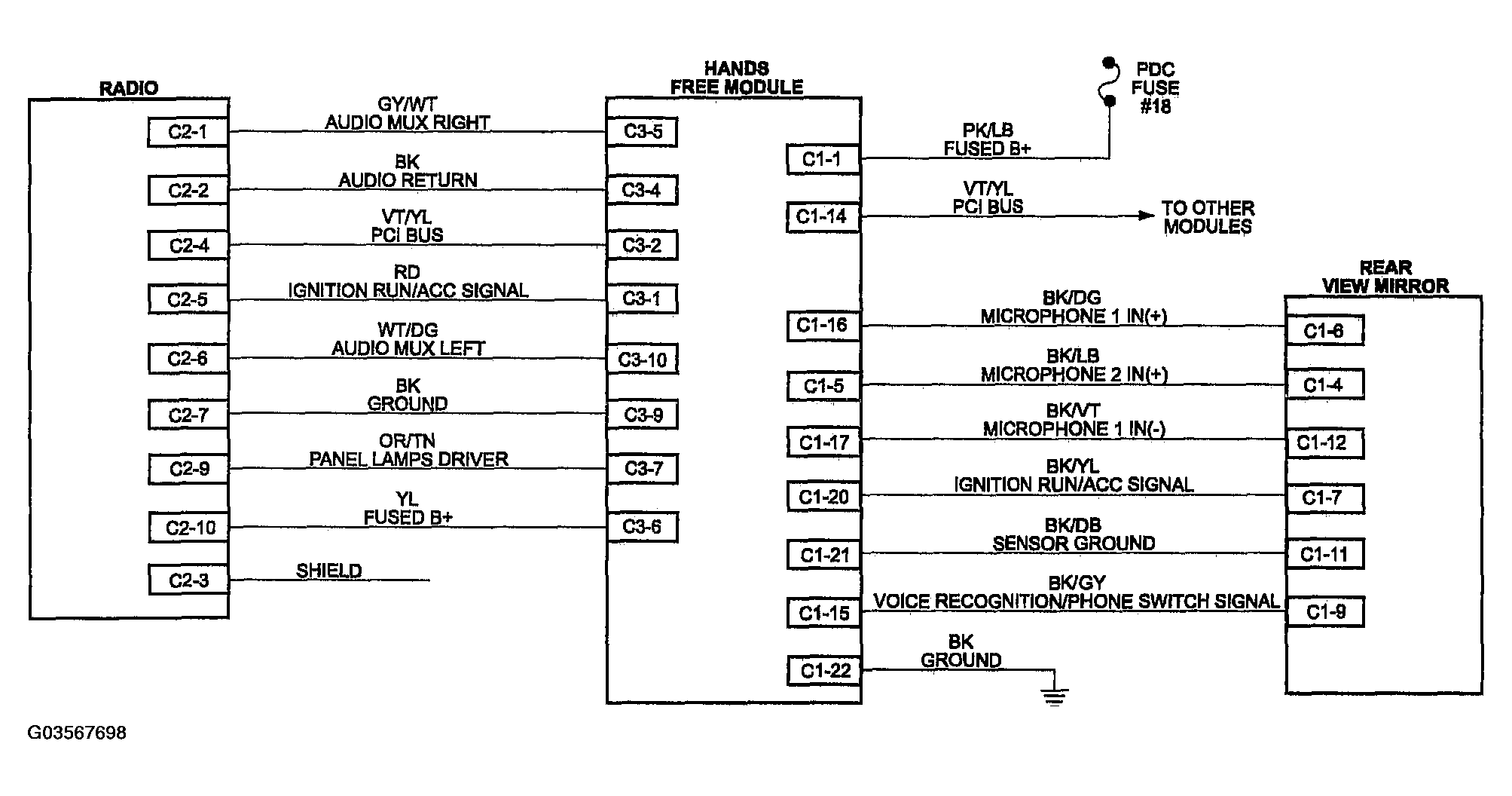

Fig 1: View Of Telecommunications - Hands Free Module (HFM) Schematic Diagram

G03567698

Courtesy of DAIMLERCHRYSLER CORP.
