Power Door Locks: Notes

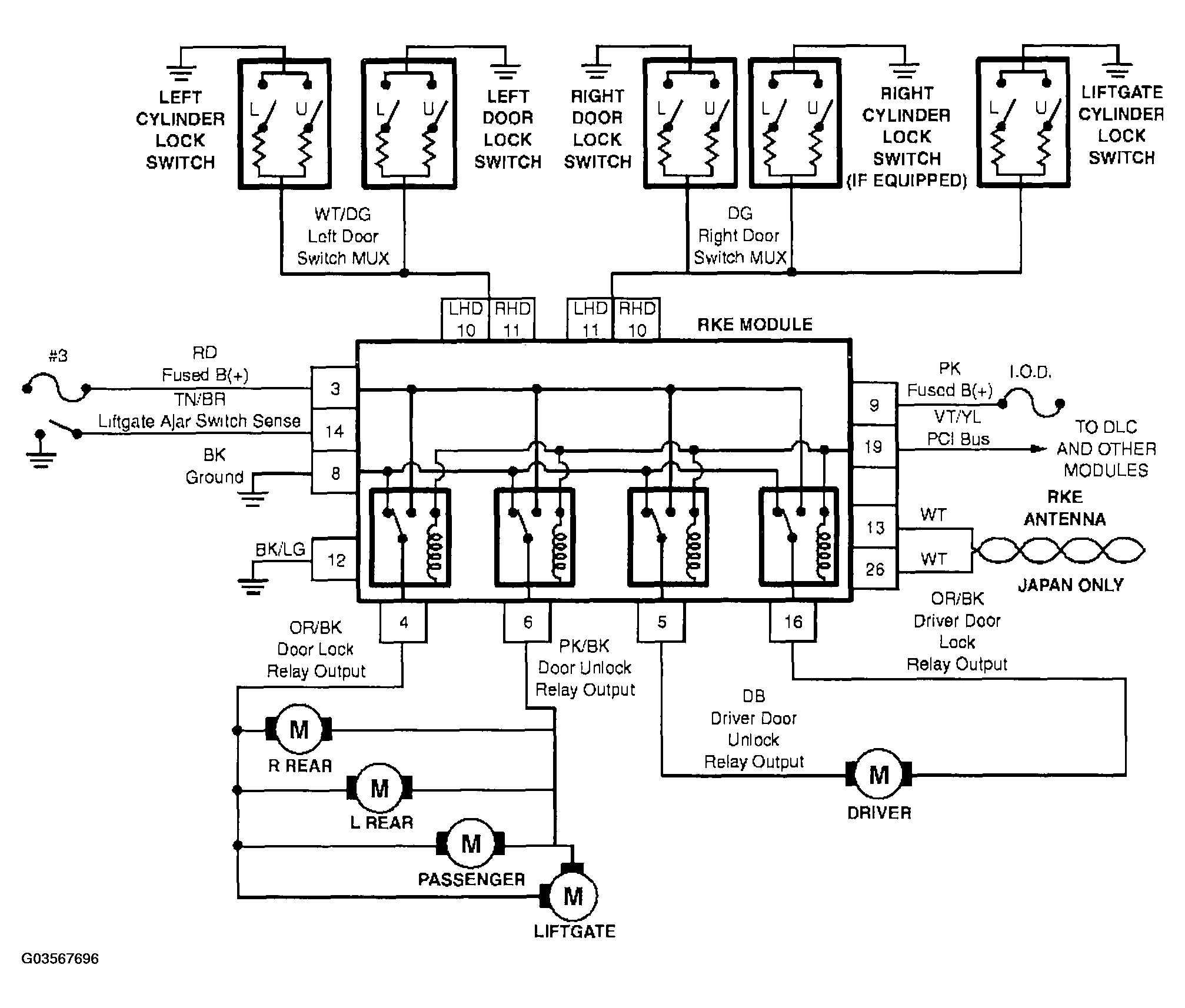

Fig 1: View Of Power Door Locks Schematic Diagram

G03567696

Courtesy of DAIMLERCHRYSLER CORP.
