Heated Seat Module Connector End View

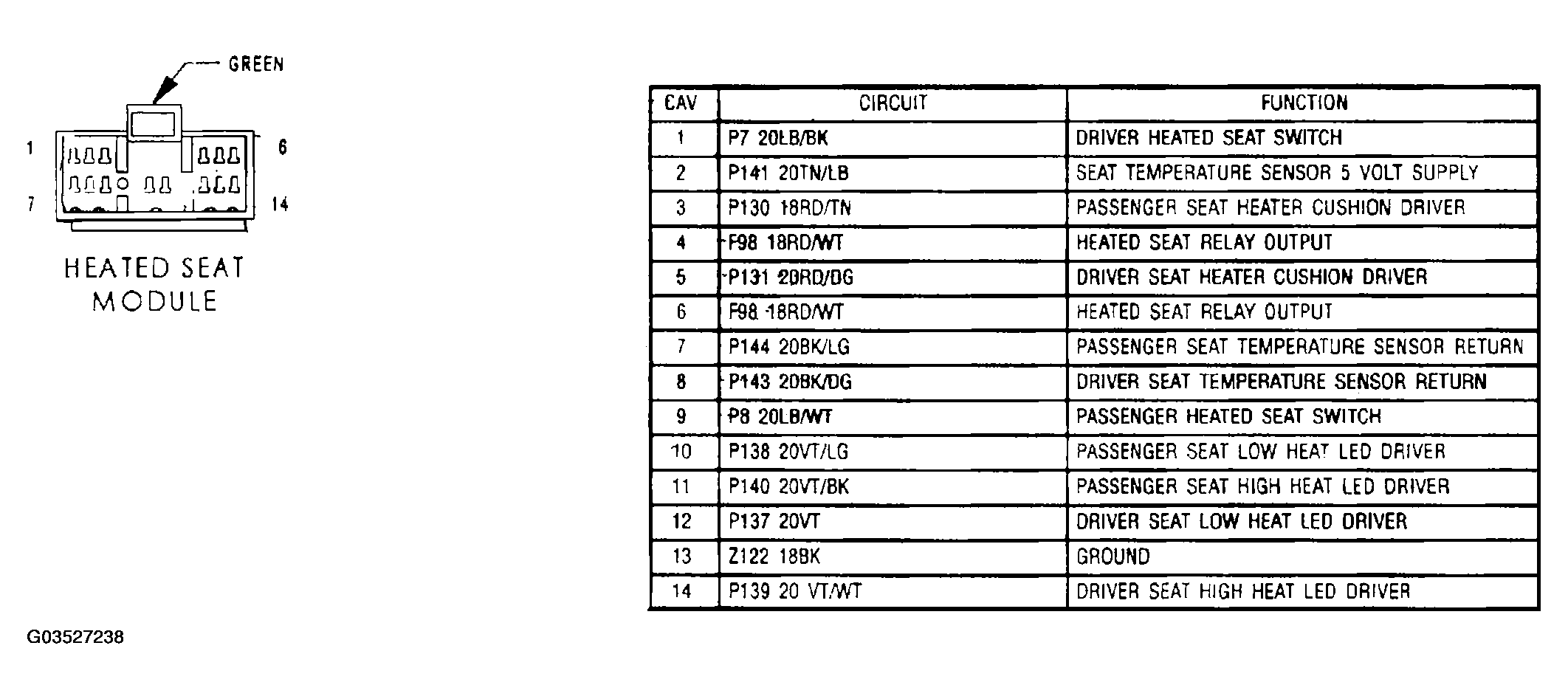

Fig 1: Heated Seat Module Connector End View

G03527238

Courtesy of DAIMLERCHRYSLER CORP.
