Right Rear Door Lock Motor/Ajar Switch Connector End View

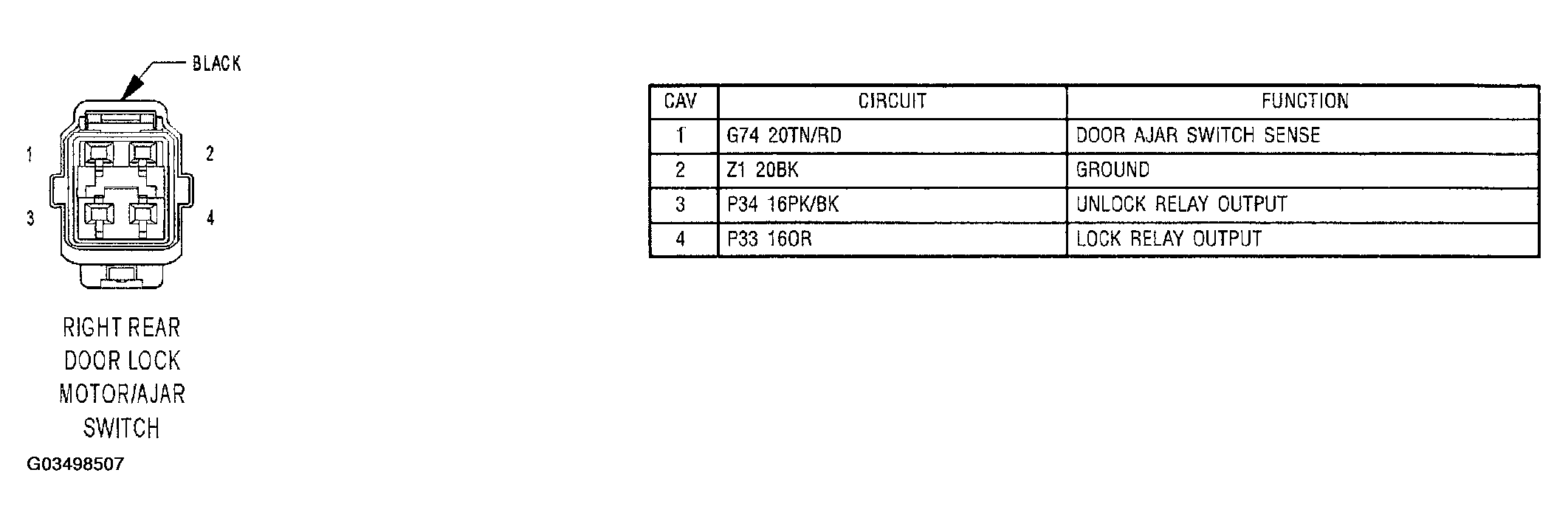

Fig 1: Right Rear Door Lock Motor/Ajar Switch Connector End View

G03498507

Courtesy of DAIMLERCHRYSLER CORP.
