2004 LH 2.7 And 3.5L

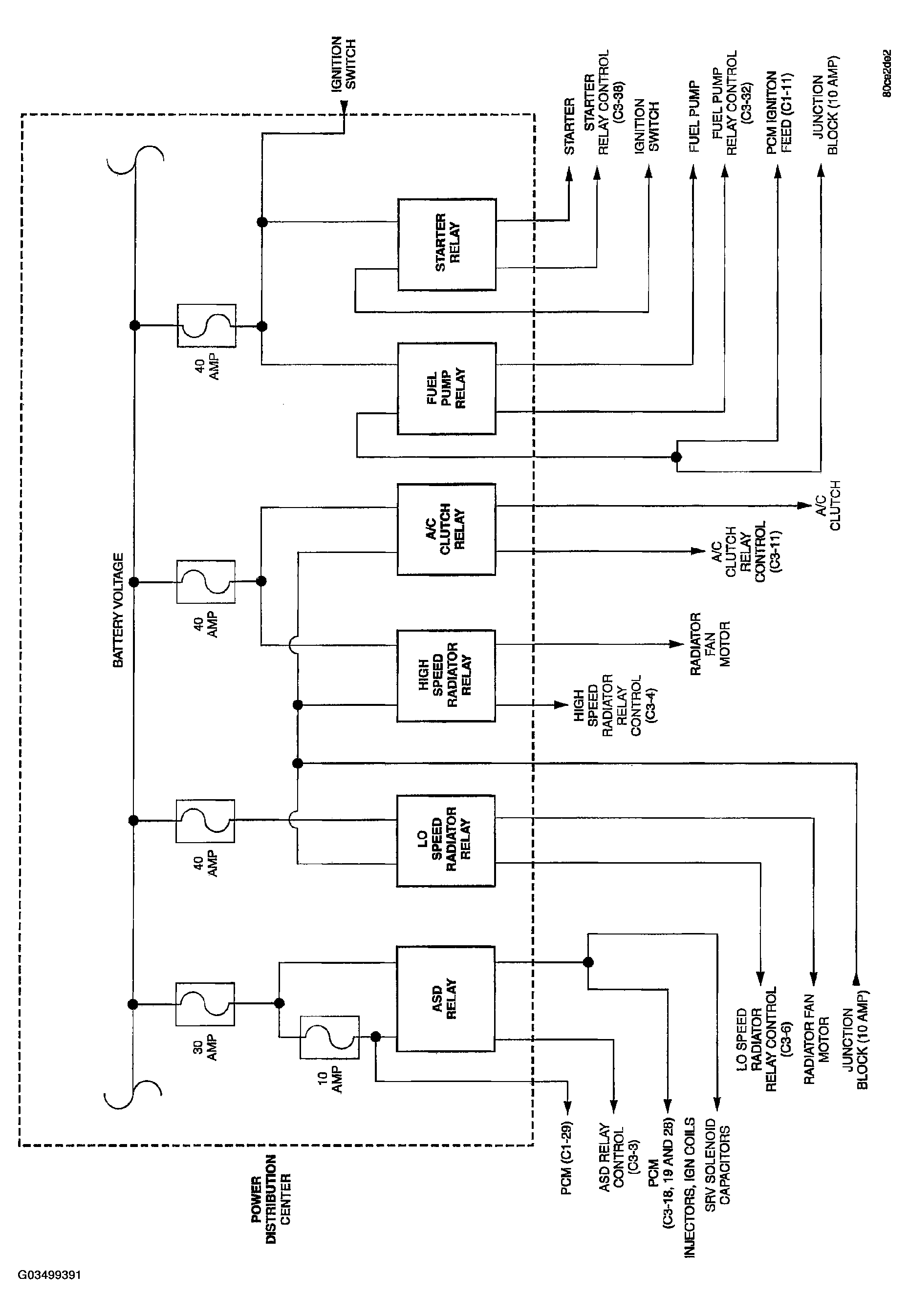

Fig 1: 2004 LH 2.7 And 3.5L Schematic Diagrams (1 Of 3)
G03499391Courtesy of DAIMLERCHRYSLER CORP.

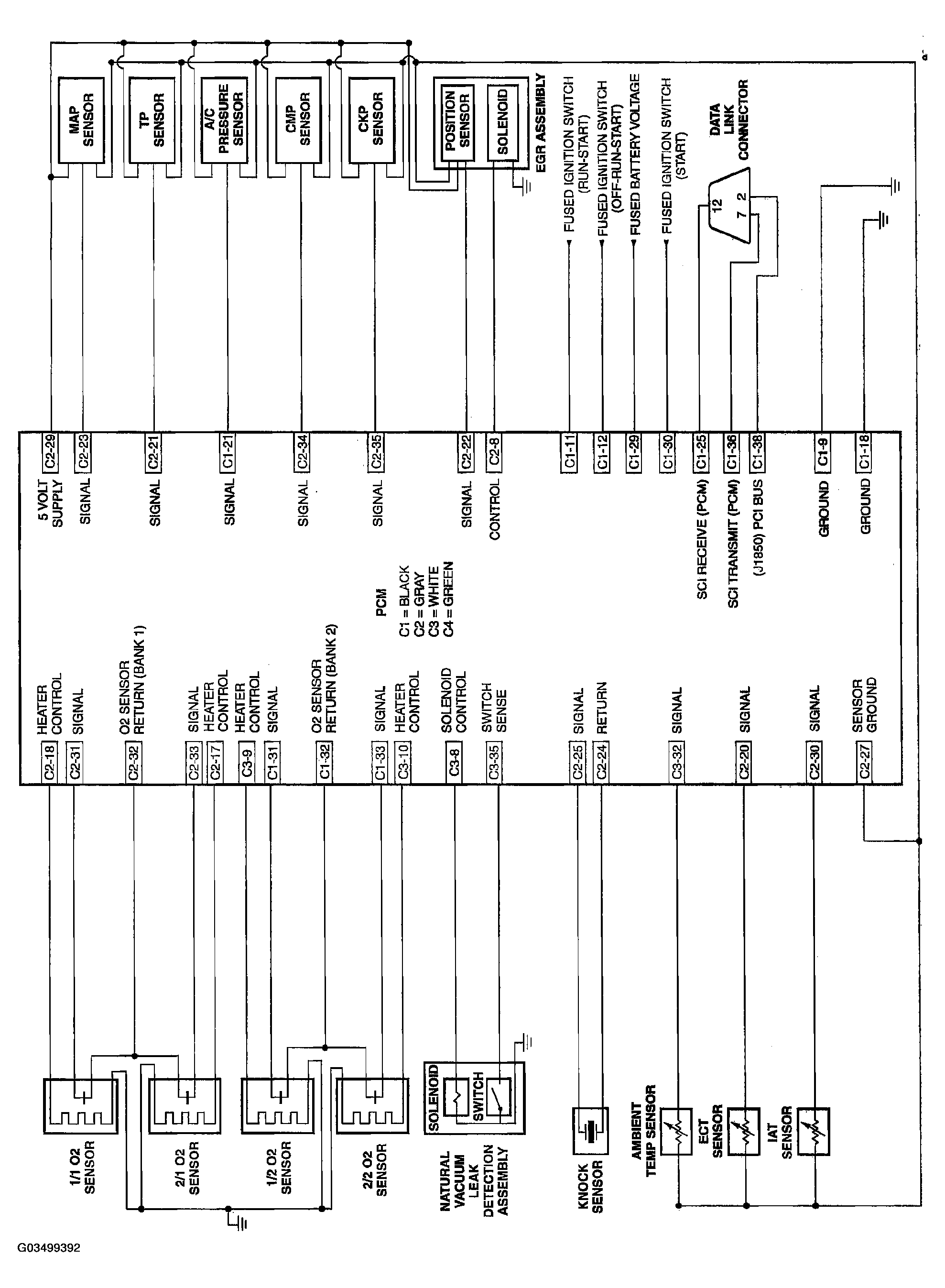

Fig 2: 2004 LH 2.7 And 3.5L Schematic Diagram (2 Of 3)
G03499392Courtesy of DAIMLERCHRYSLER CORP.

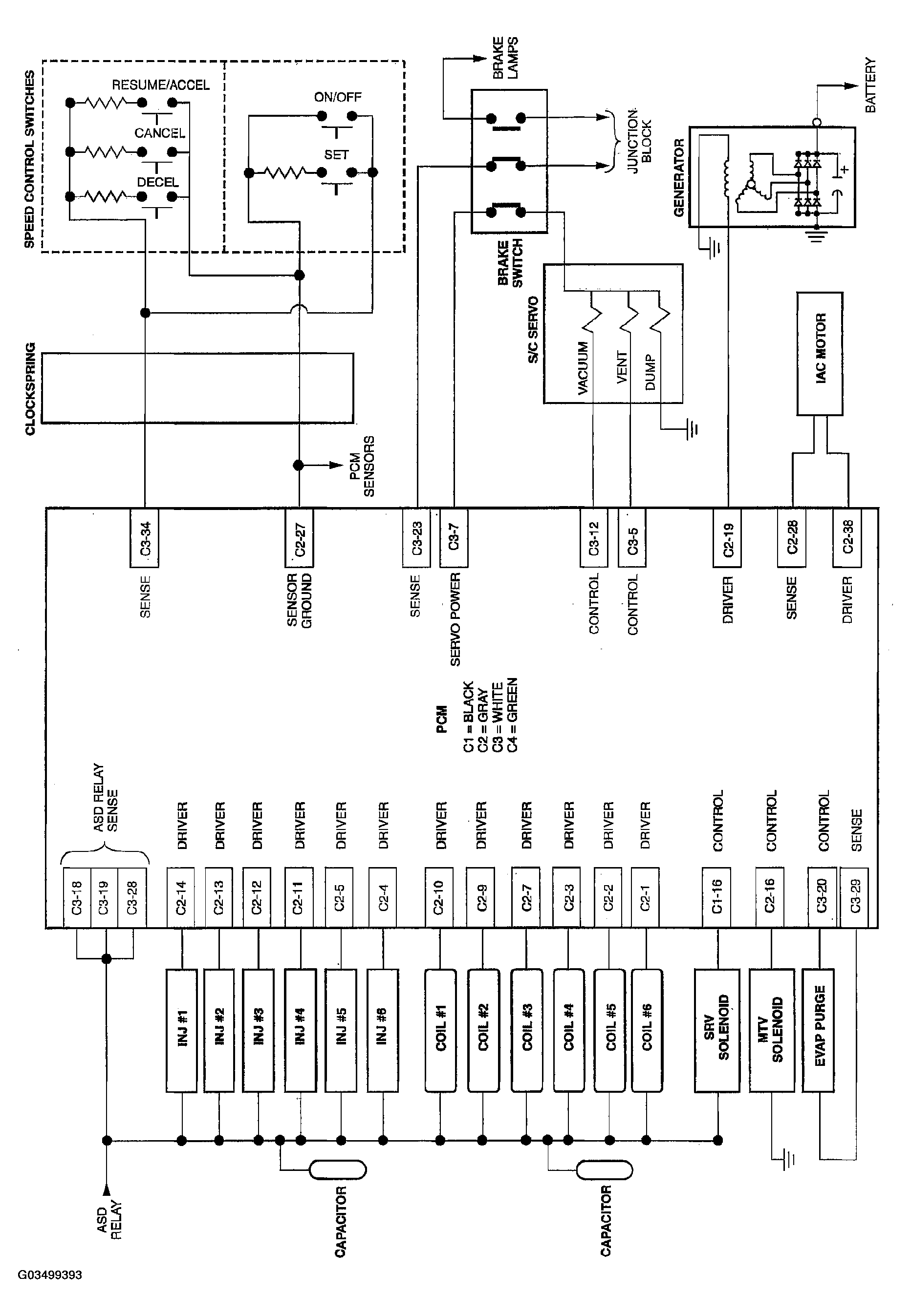

Fig 3: 2004 LH 2.7 And 3.5L Schematic Diagram (3 Of 3)
G03499393Courtesy of DAIMLERCHRYSLER CORP.
