Diagnostic Procedure

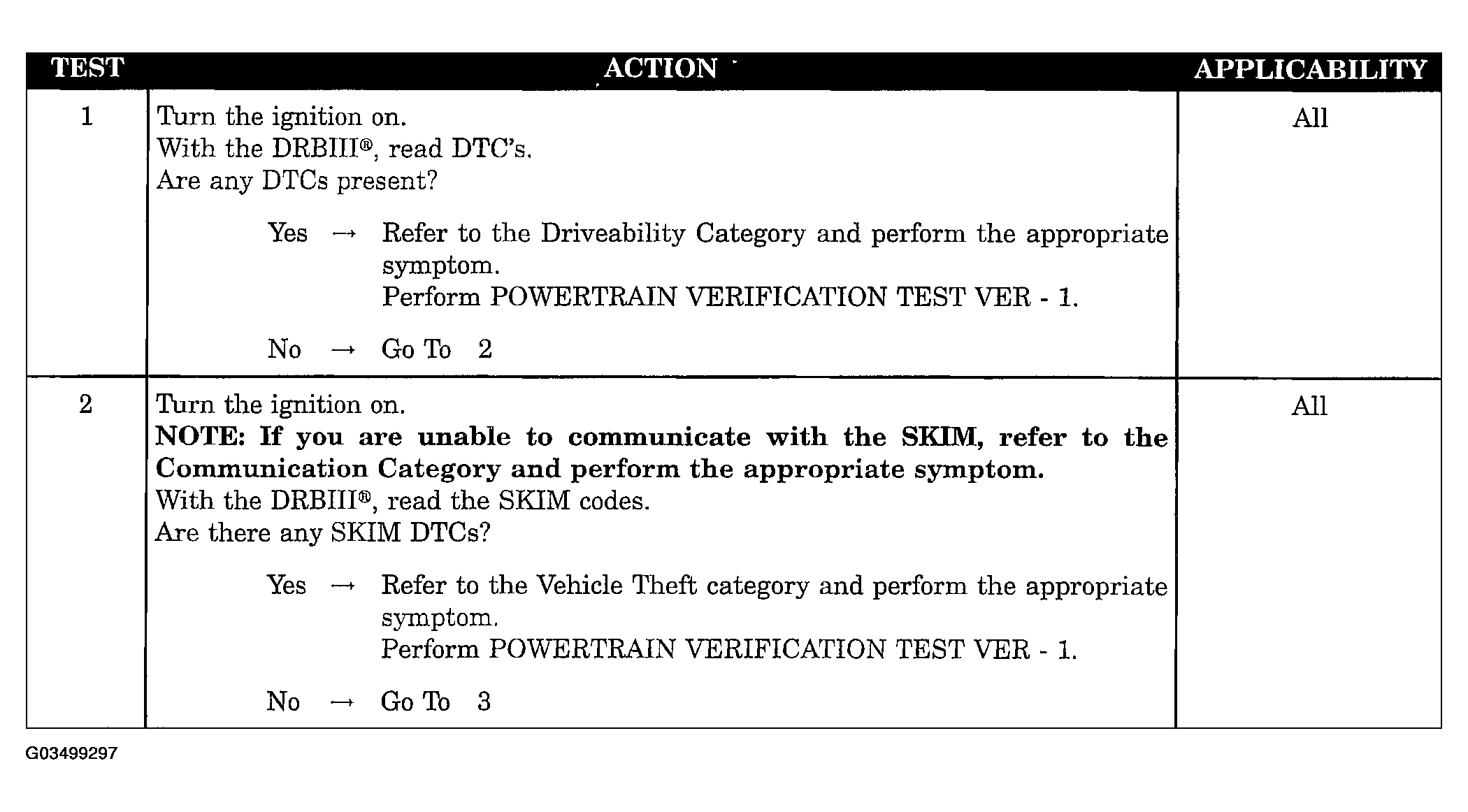

Fig 1: Start And Stall Condition - Diagnostic Procedure (1 Of 3)
G03499297Courtesy of DAIMLERCHRYSLER CORP.

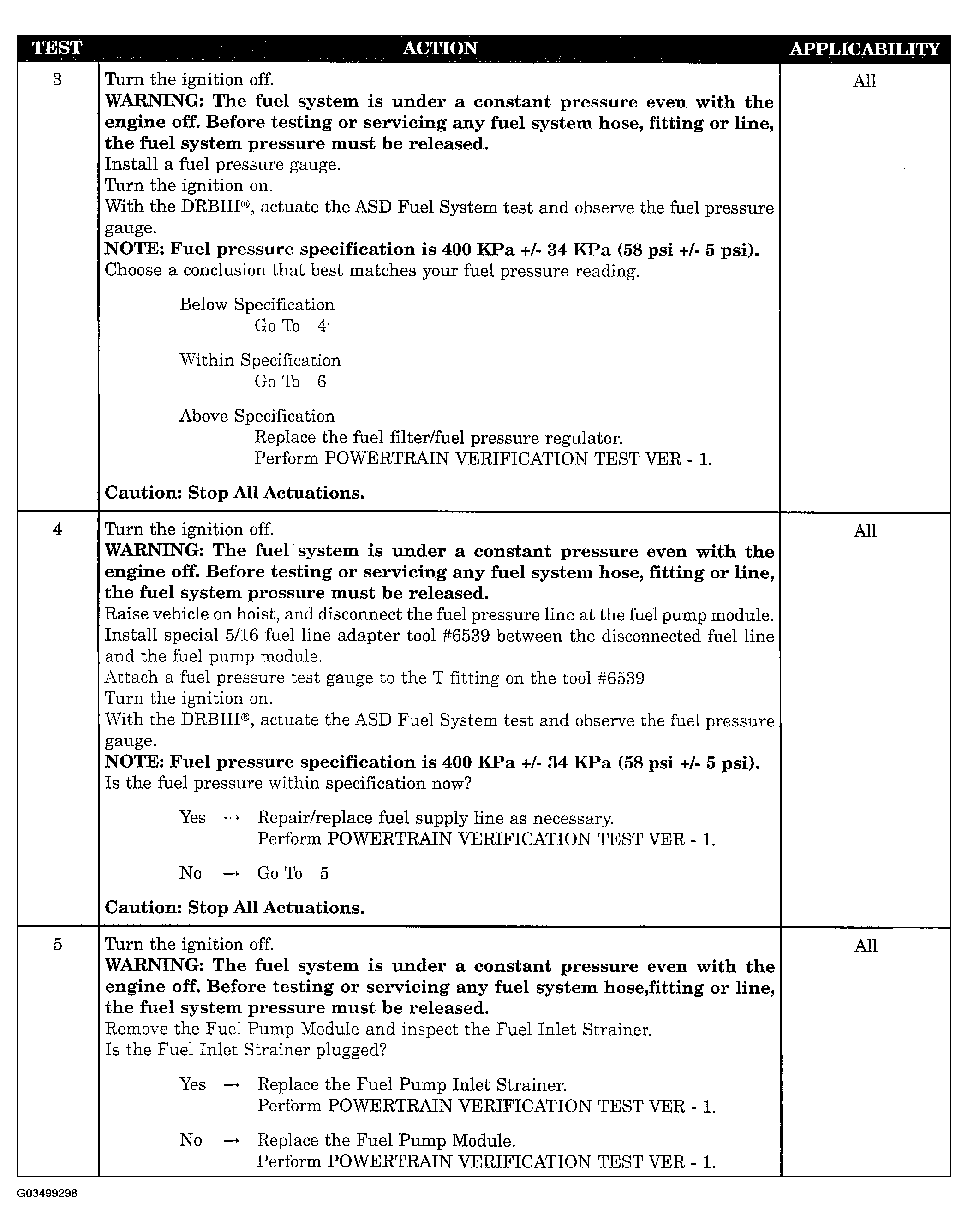

Fig 2: Start And Stall Condition - Diagnostic Procedure (2 Of 3)
G03499298Courtesy of DAIMLERCHRYSLER CORP.

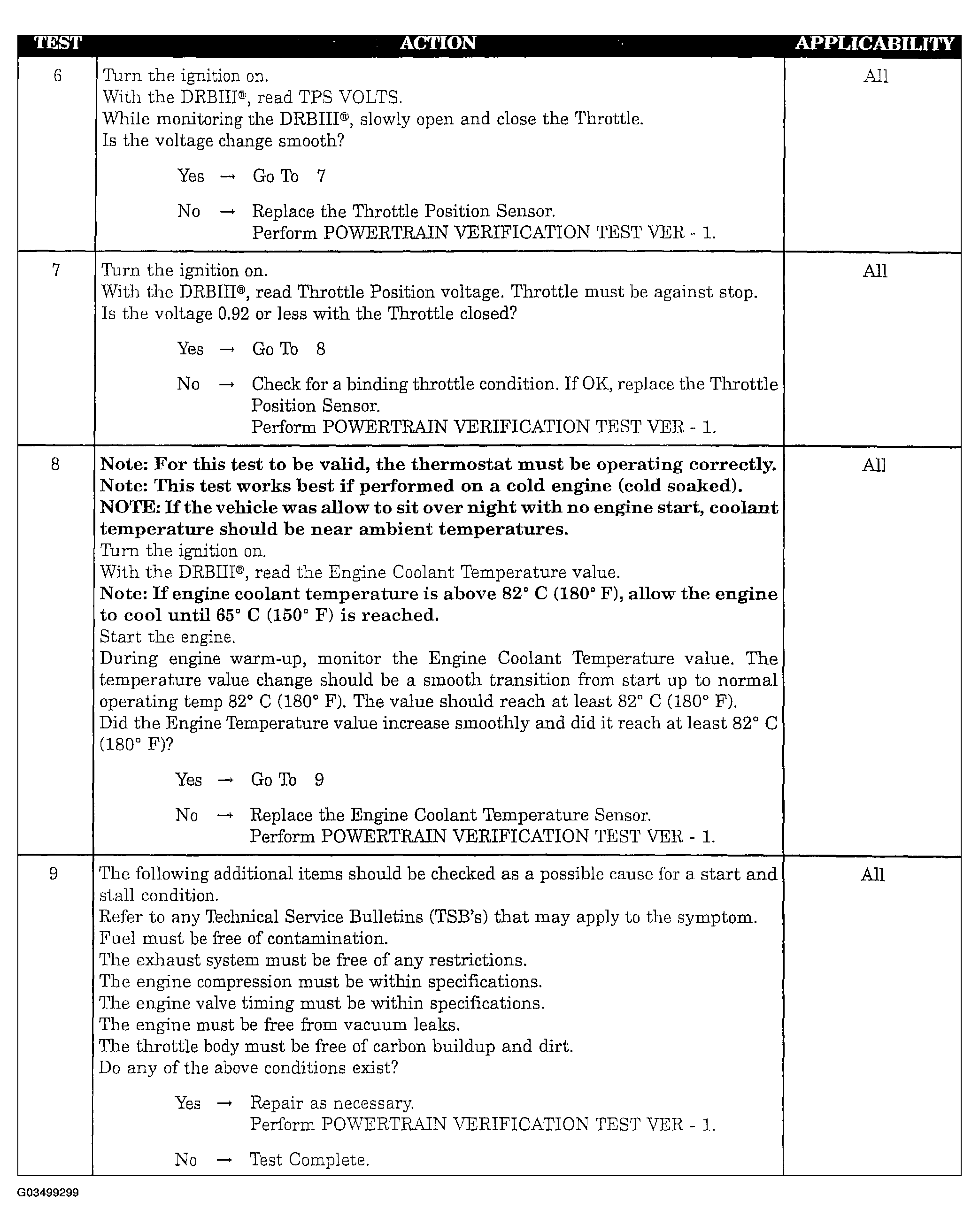

Fig 3: Start And Stall Condition - Diagnostic Procedure (3 Of 3)
G03499299Courtesy of DAIMLERCHRYSLER CORP.
