Diagnostic Procedure

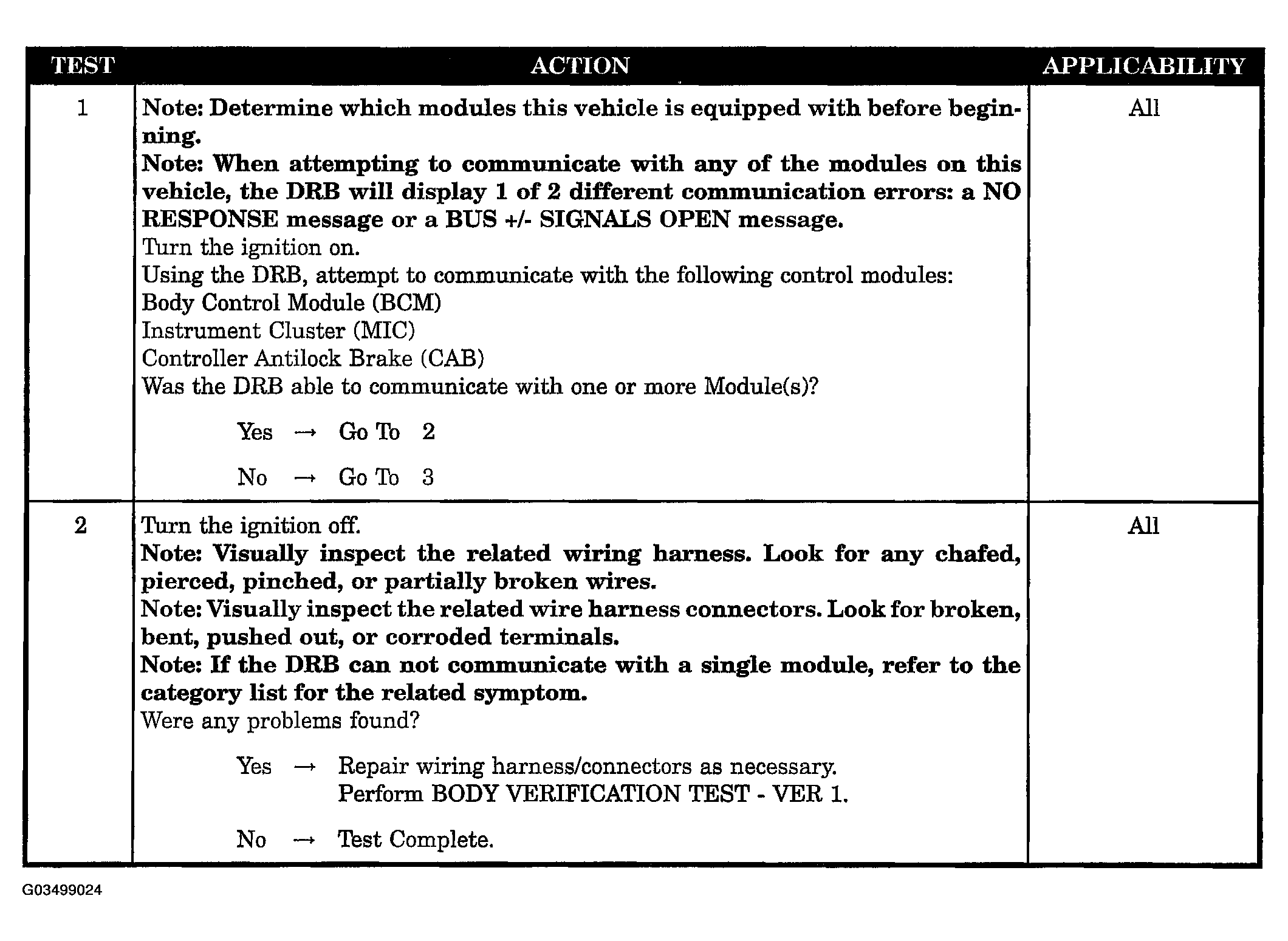

Fig 1: PCI Bus Communication Failure - Diagnostic Procedure (1 Of 3)
G03499024Courtesy of DAIMLERCHRYSLER CORP.

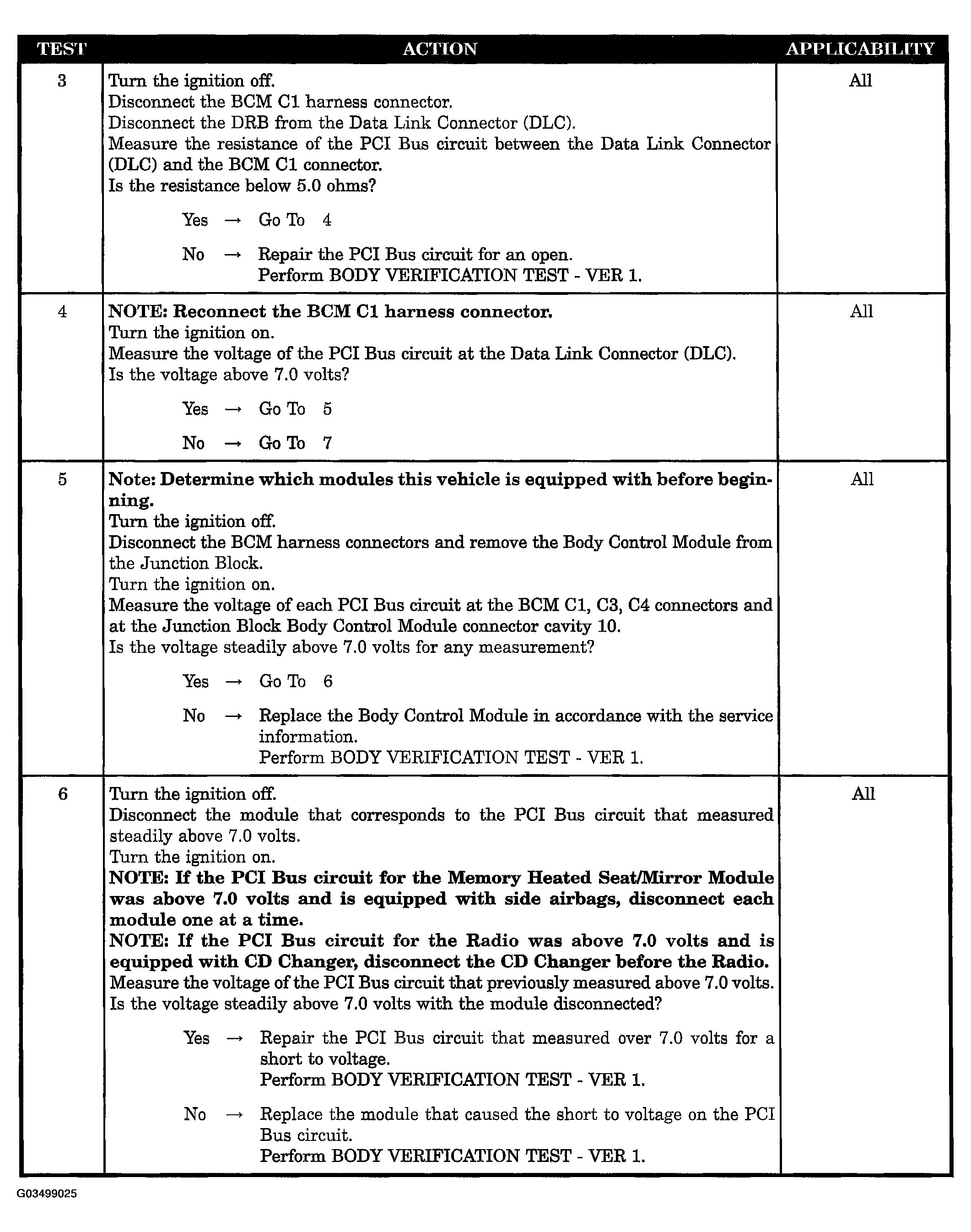

Fig 2: PCI Bus Communication Failure - Diagnostic Procedure (2 Of 3)
G03499025Courtesy of DAIMLERCHRYSLER CORP.

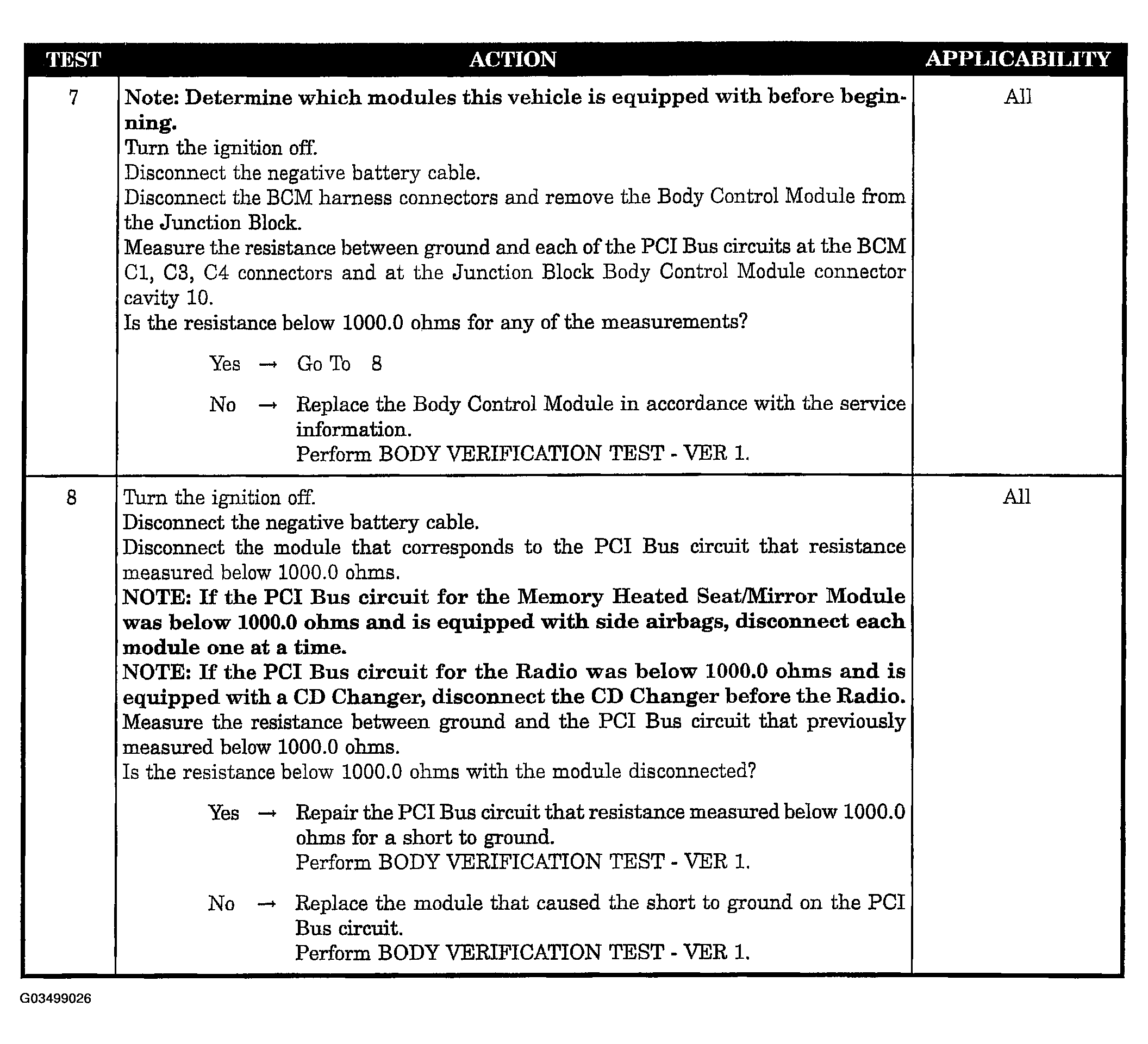

Fig 3: PCI Bus Communication Failure - Diagnostic Procedure (3 Of 3)
G03499026Courtesy of DAIMLERCHRYSLER CORP.
