Mode Door Actuator Connector End View

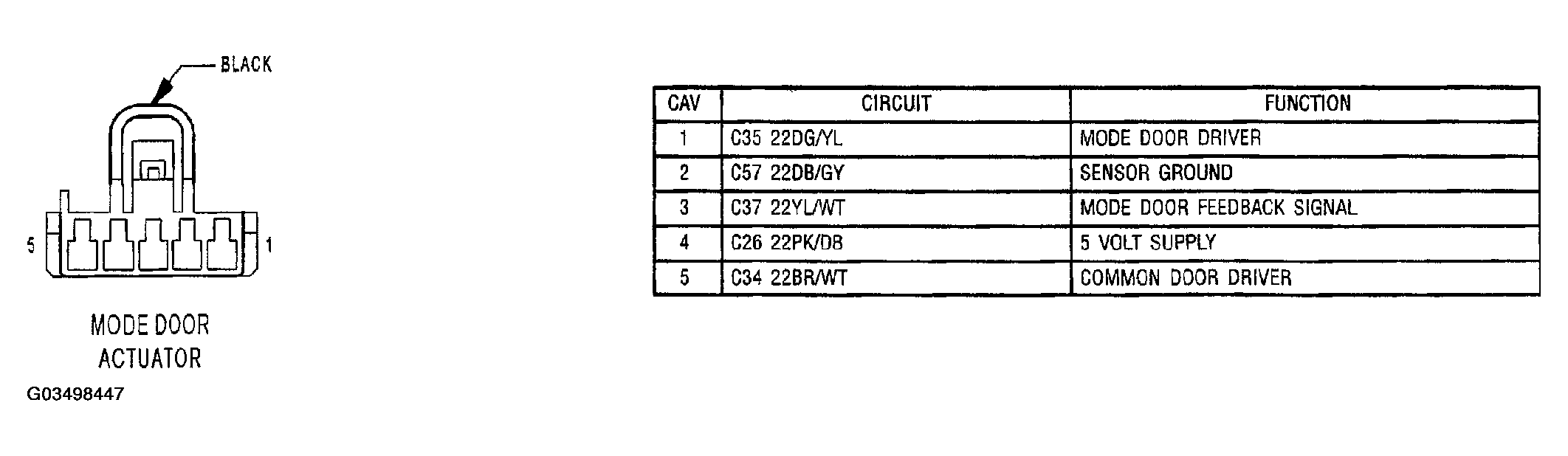

Fig 1: Mode Door Actuator Connector End View

G03498447

Courtesy of DAIMLERCHRYSLER CORP.
