Passenger Door Lock Motor/Ajar Switch Connector End View

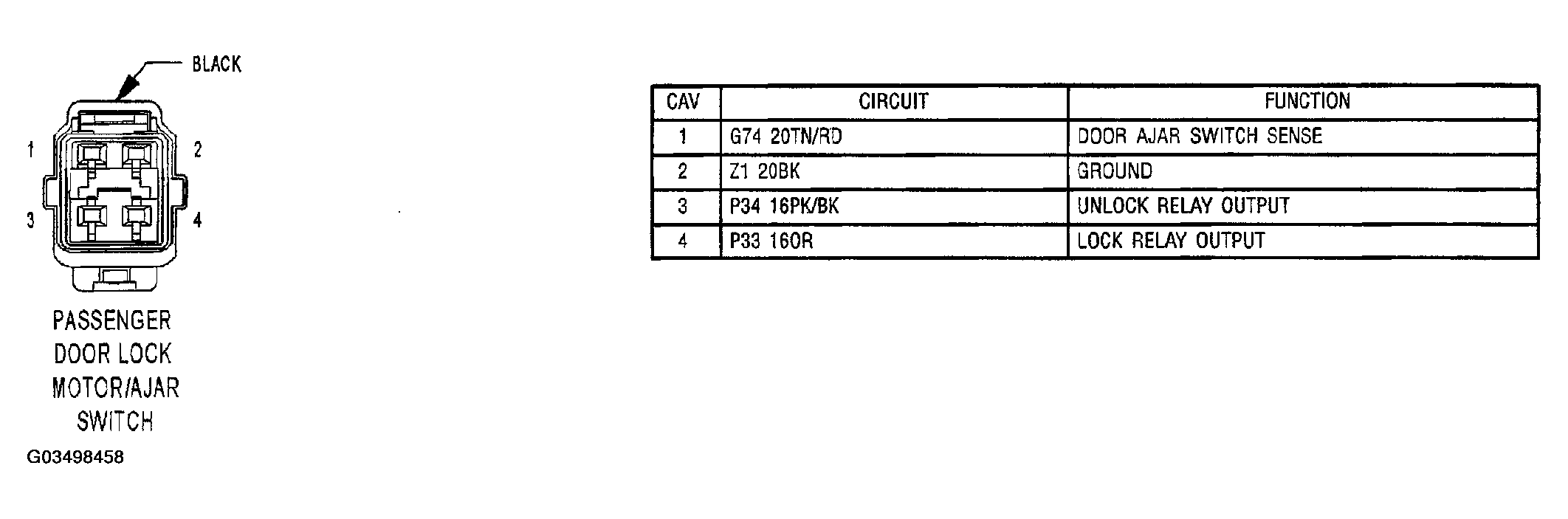

Fig 1: Passenger Door Lock Motor/Ajar Switch Connector End View

G03498458

Courtesy of DAIMLERCHRYSLER CORP.
