C311 (DECKLID Side) Connector End View

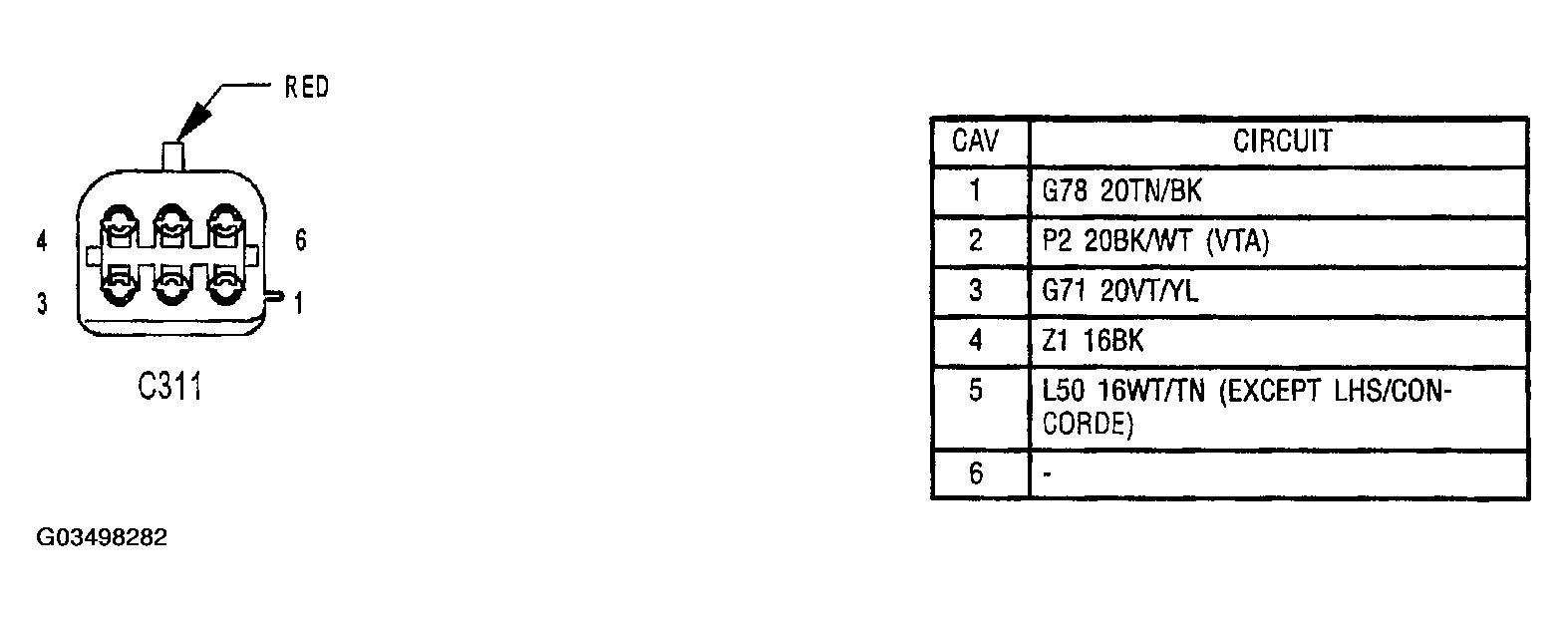

Fig 1: Decklid Side Inline Connector End View (C311)

G03498282

Courtesy of DAIMLERCHRYSLER CORP.
