Overhead Travel Information System (Premium) Connector End View

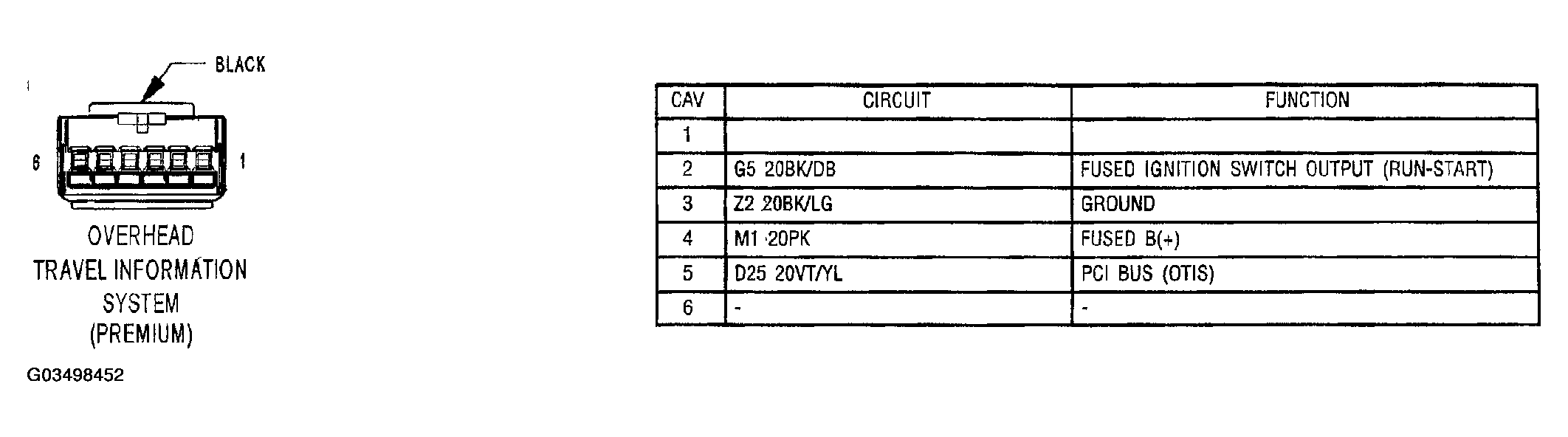

Fig 1: Overhead Travel Information System (Premium) Connector End View

G03498452

Courtesy of DAIMLERCHRYSLER CORP.
