Transmission Front Section: Disassembly

  1. Remove the transmission. See MANUAL - REMOVAL & INSTALLATION article.
  2. Separate the front and rear transmission sections. See GEARTRAIN HOUSING .
  3. Remove the locking plate bolts (4) and the locking plates (5).

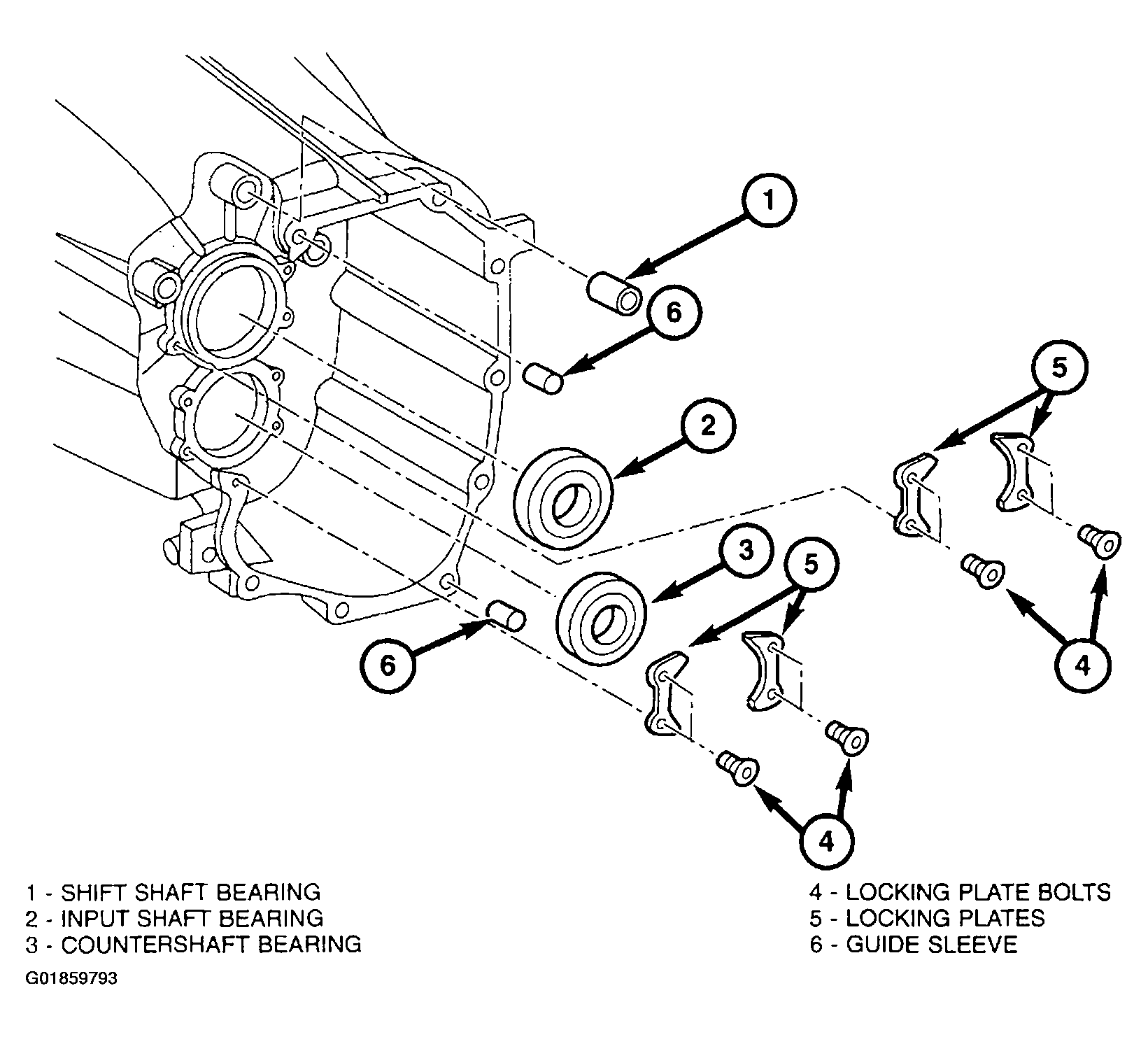

    Fig 1: Identifying Transmission Front Section Components
    G01859793Courtesy of DAIMLERCHRYSLER CORP.
  4. Drive out the input shaft bearing (2) and the countershaft bearing (3).
  5. Remove the shift shaft bearing (1).
  6. Remove the guide sleeves (6).
