Home >> Chrysler >> 2004 >> Crossfire Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission - Servicing & Overhaul >> Manual - Service Information >> Specifications >> Torque Specifications

Torque Specifications

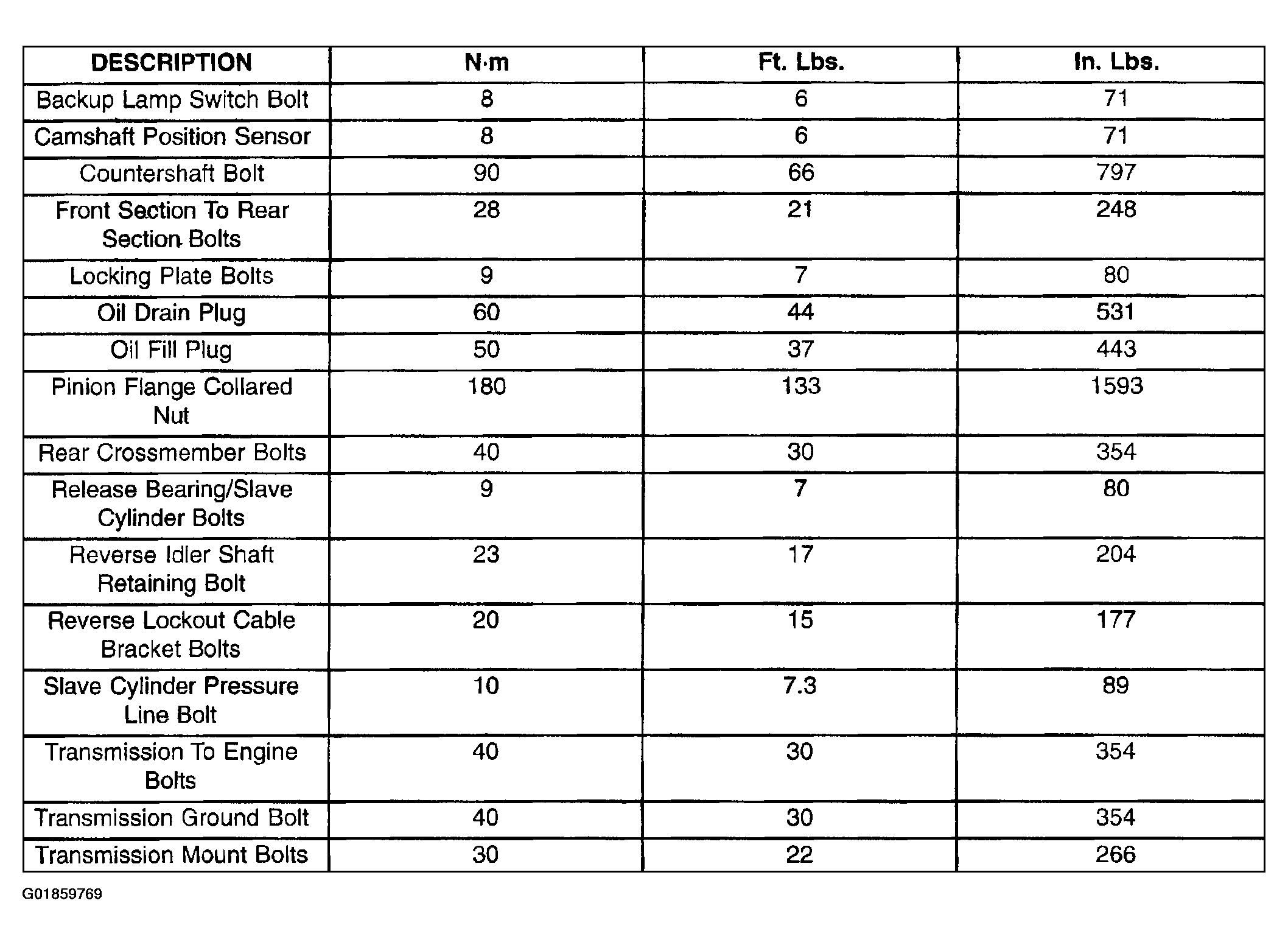

Fig 1: Fastener Tightening Torque Specifications Table

G01859769

Courtesy of DAIMLERCHRYSLER CORP.
