Checking Fluid Level

  1. Raise and support the vehicle.
  2. Remove the transmission fill plug (1).

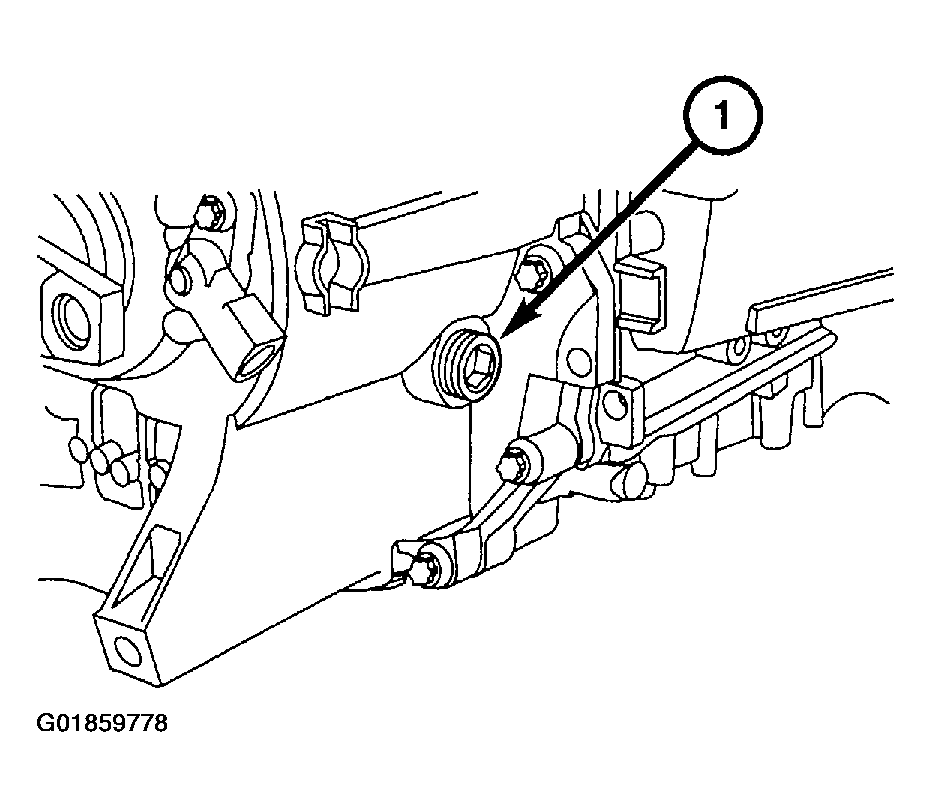

    Fig 1: Removing & Installing Transmission Fill Plug
    G01859778Courtesy of DAIMLERCHRYSLER CORP.
  3. The full fluid level should be at the base of the fill plug threaded hole. If the fluid is low, check for visible transmission fluid leaks and top off the fluid level.
  4. Install and tighten the fill plug (1) to 50 N.m (37 ft. lbs.).
  5. Lower the vehicle.
