Detent Plug: Removal

  1. Remove the transmission. See MANUAL - REMOVAL & INSTALLATION article.
  2. Mount the transmission on a holding fixture.
  3. Use Special Tool C-3752 Slide Hammer and 8870 Adaptor to remove the detent plug (1).

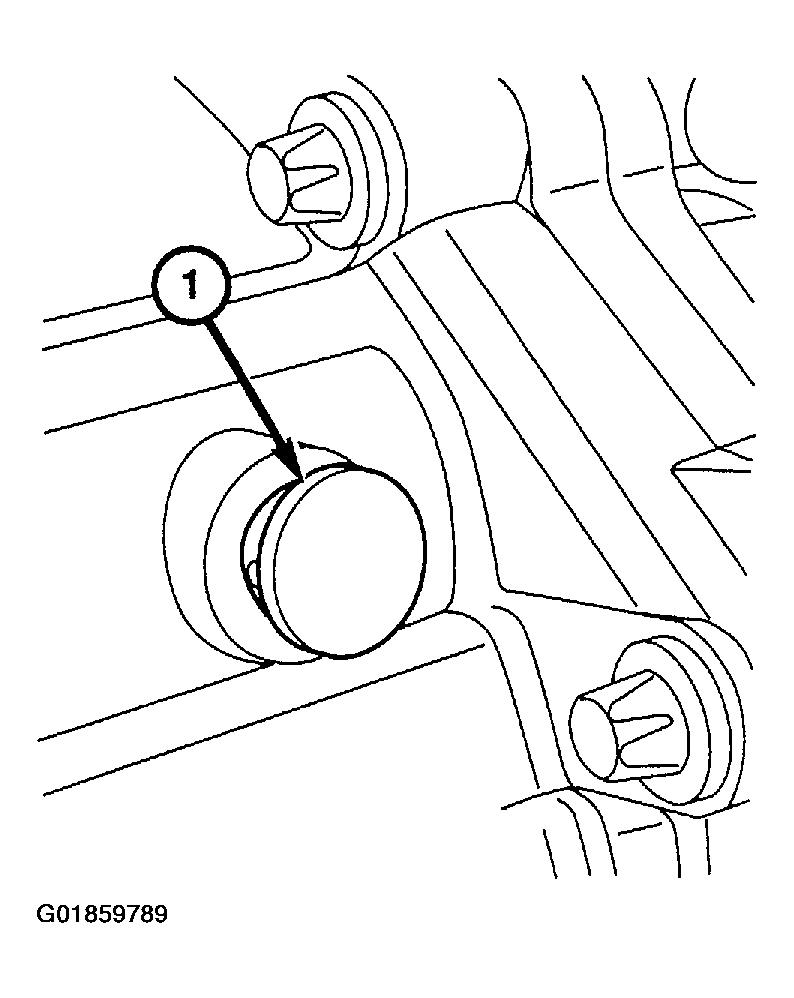

    Fig 1: Removing Detent Plug
    G01859789Courtesy of DAIMLERCHRYSLER CORP.
