Detent Plug: Installation

  1. Smooth any burrs or nicks in the detent plug bore.
  2. Use a plastic mallet to drive in and fully seat the detent plug (1).

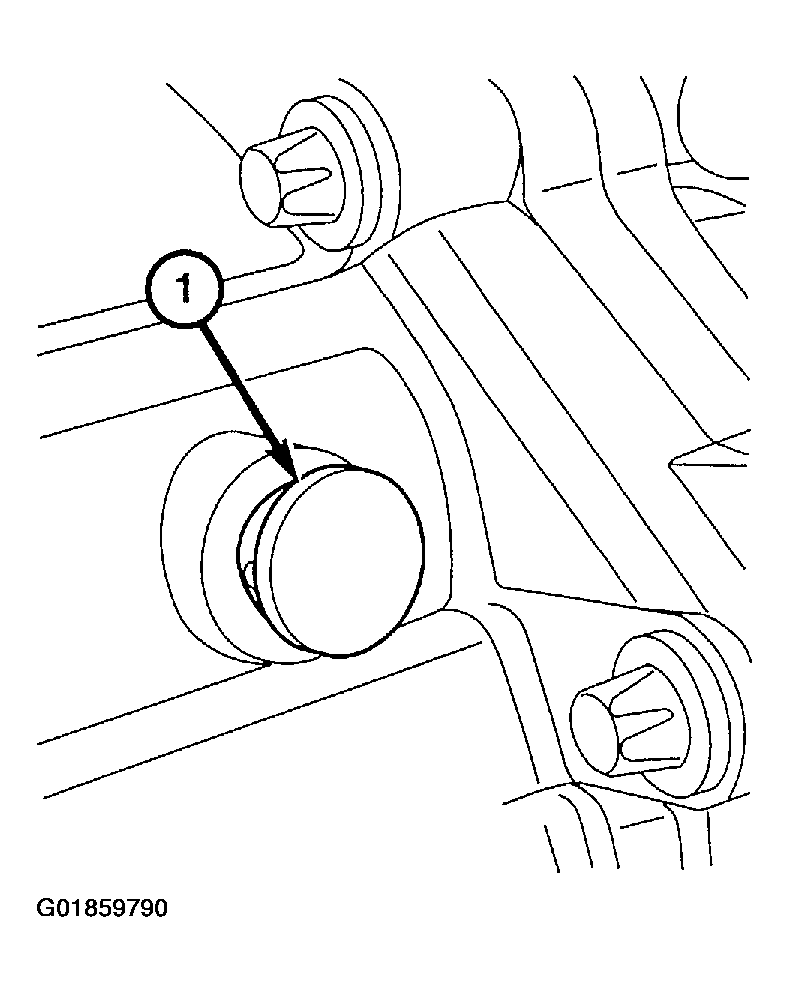

    Fig 1: Seating Detent Plug
    G01859790Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the transmission from the holding fixture.
  4. Install the transmission in the vehicle. See MANUAL - REMOVAL & INSTALLATION article.
