Inline Connector End View (C219)

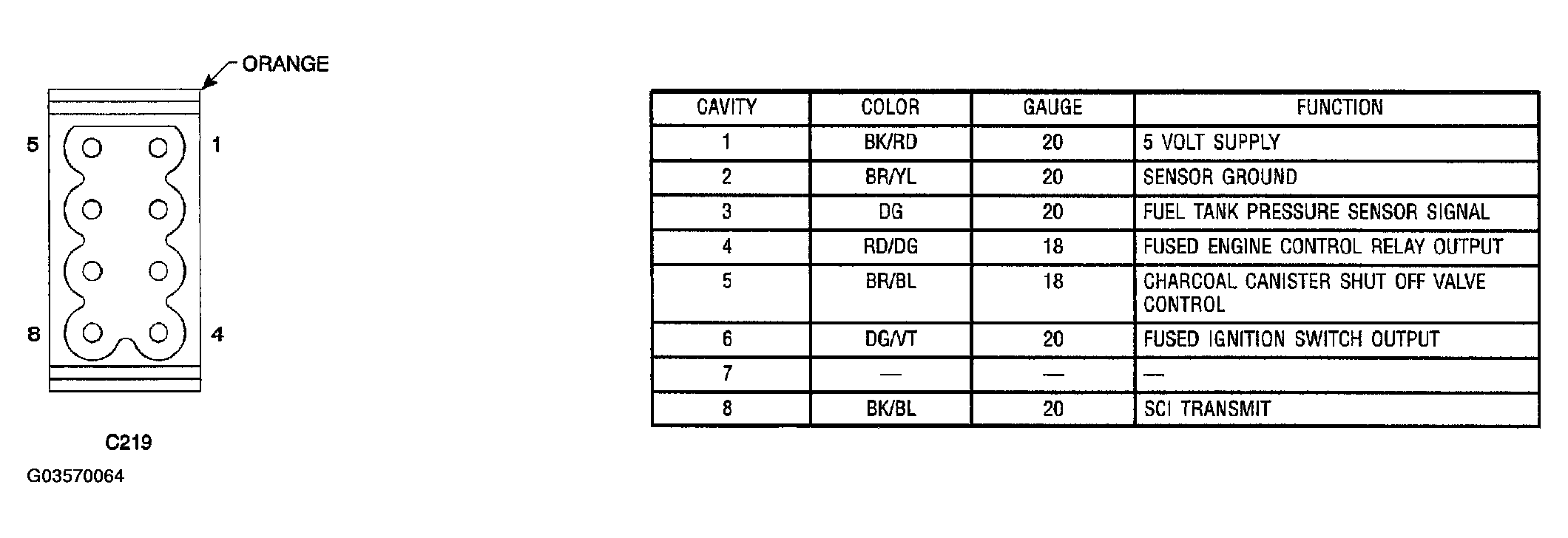

Fig 1: Inline Connector End View (C219)

G03570064

Courtesy of DAIMLERCHRYSLER CORP.

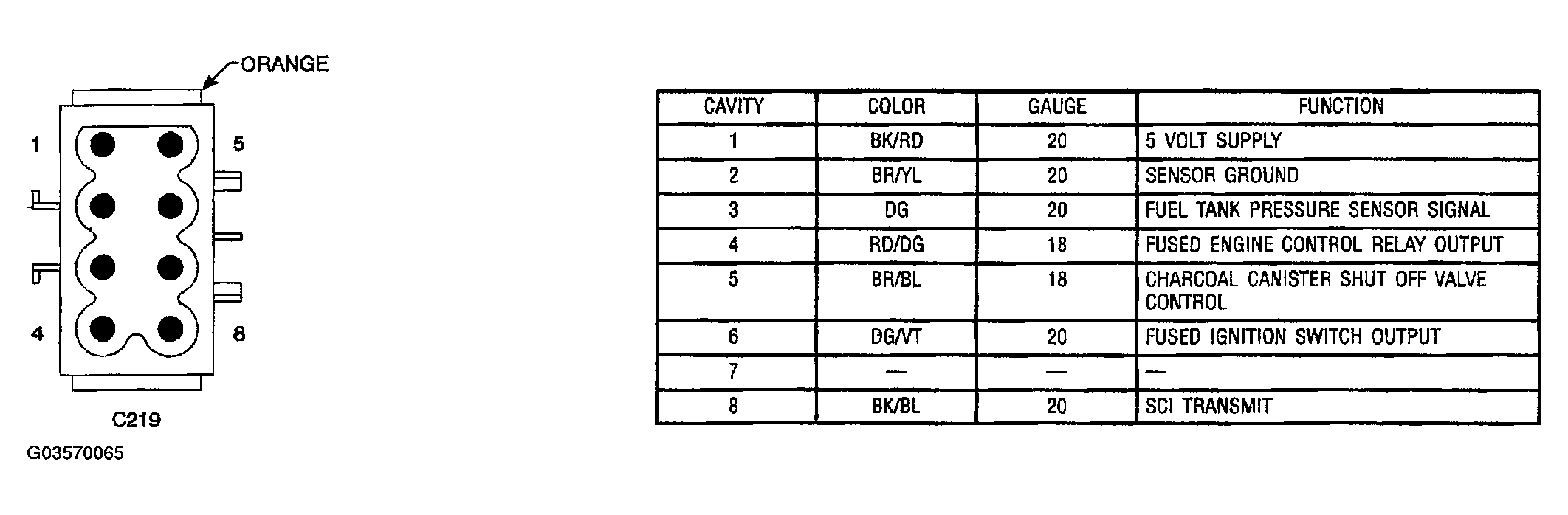

Fig 1: Inline Connector End View (C219)

G03570065

Courtesy of DAIMLERCHRYSLER CORP.
