Inline Connector End View (C211)

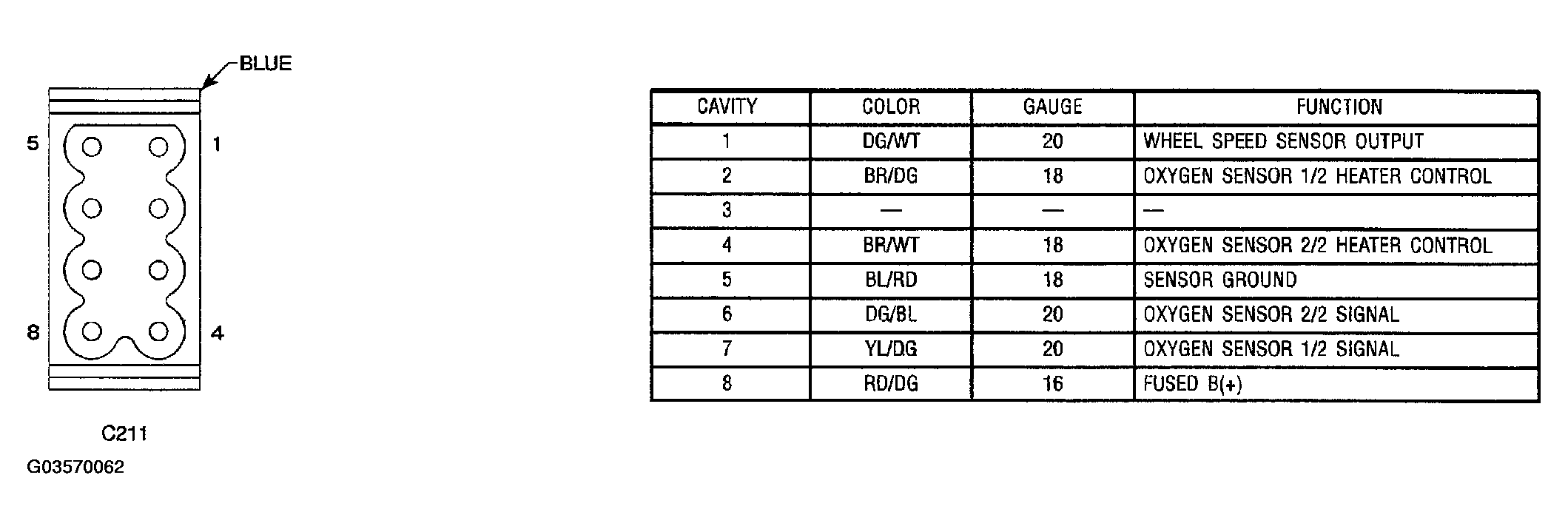

Fig 1: Inline Connector End View (C211)

G03570062

Courtesy of DAIMLERCHRYSLER CORP.

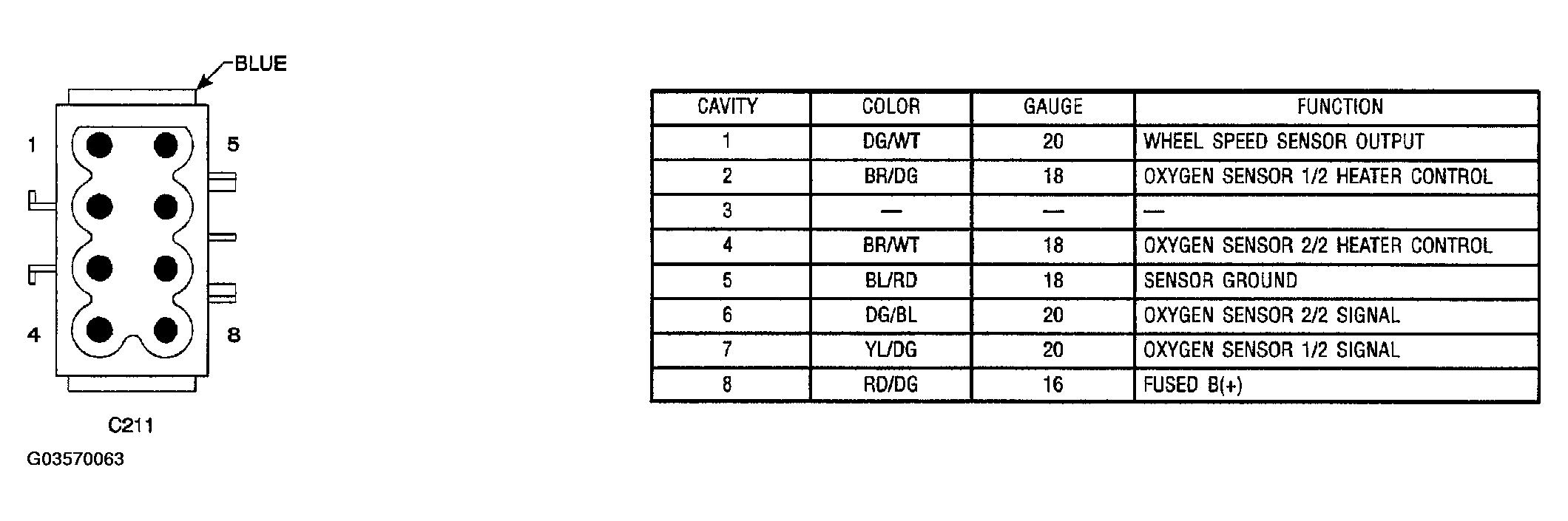

Fig 1: Inline Connector End View (C211)

G03570063

Courtesy of DAIMLERCHRYSLER CORP.
