Circuit Diagram & Connector Identification

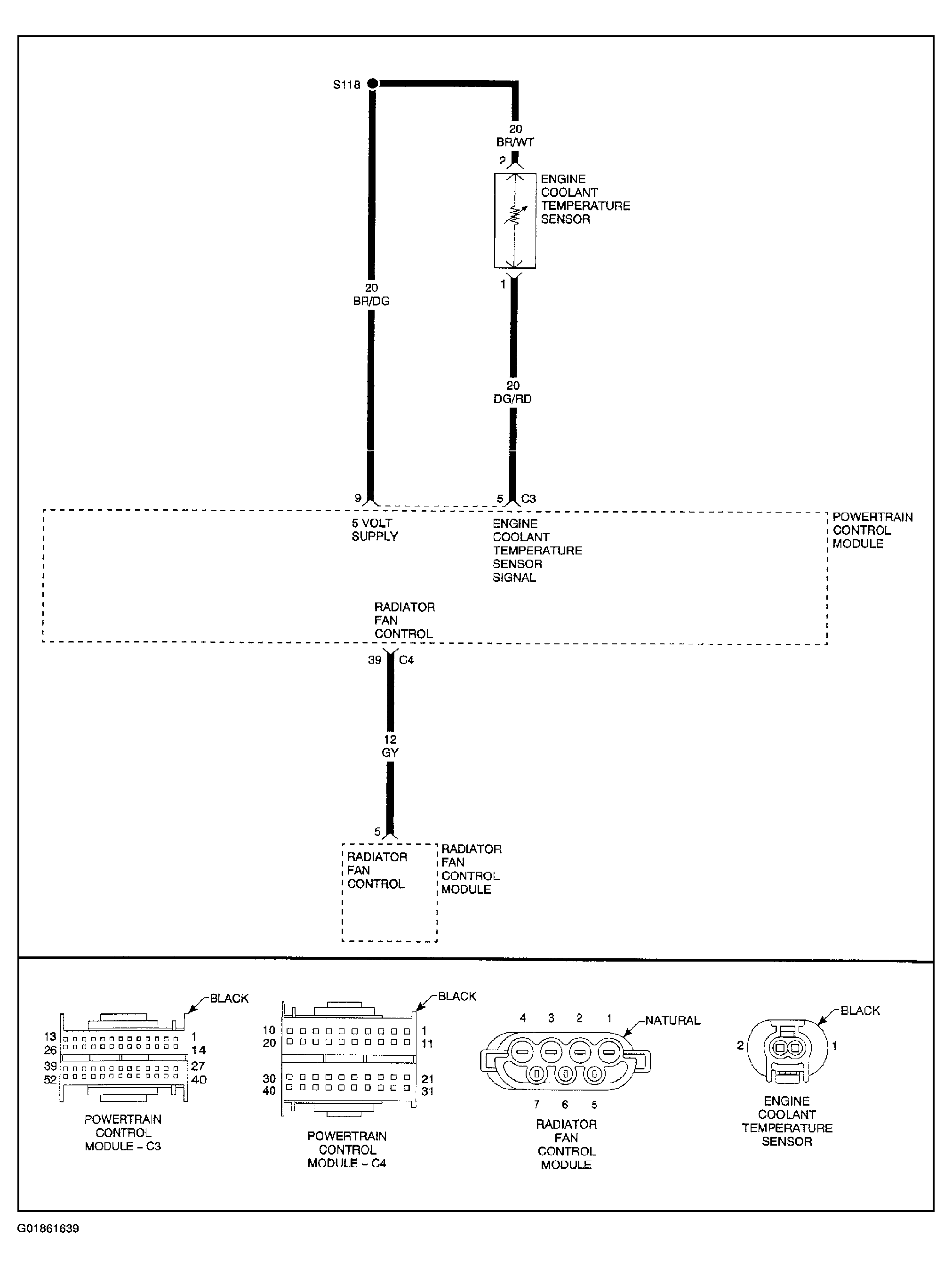

Fig 1: Identifying DTC P0117 Circuit Diagram & Connector Identification

G01861639

Courtesy of DAIMLERCHRYSLER CORP.
