ESP Brake Pressure Sensor Connector End View (2)

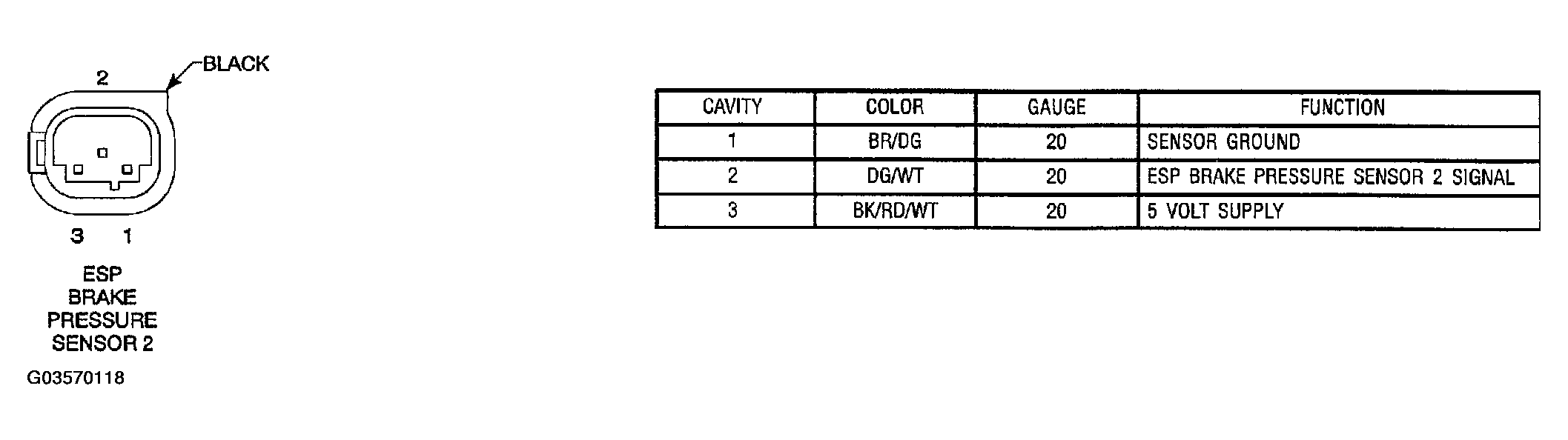

Fig 1: ESP Brake Pressure Sensor Connector End View (2)

G03570118

Courtesy of DAIMLERCHRYSLER CORP.
