Specifications - Power Locks
>>
Pneumatic Specifications
Pneumatic Specifications

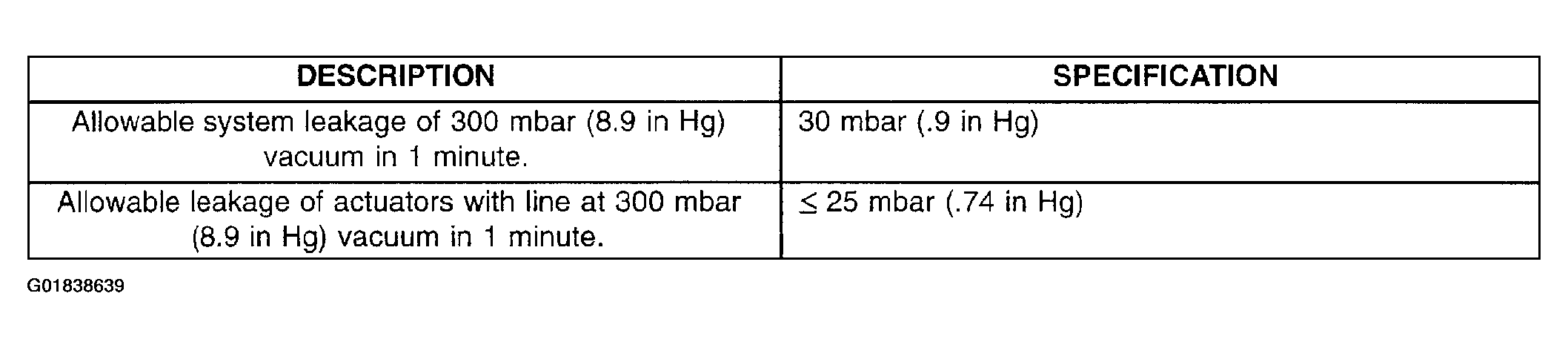

Fig 1: Identifying Pneumatic Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
