Liftgate Lock Switch Connector End View

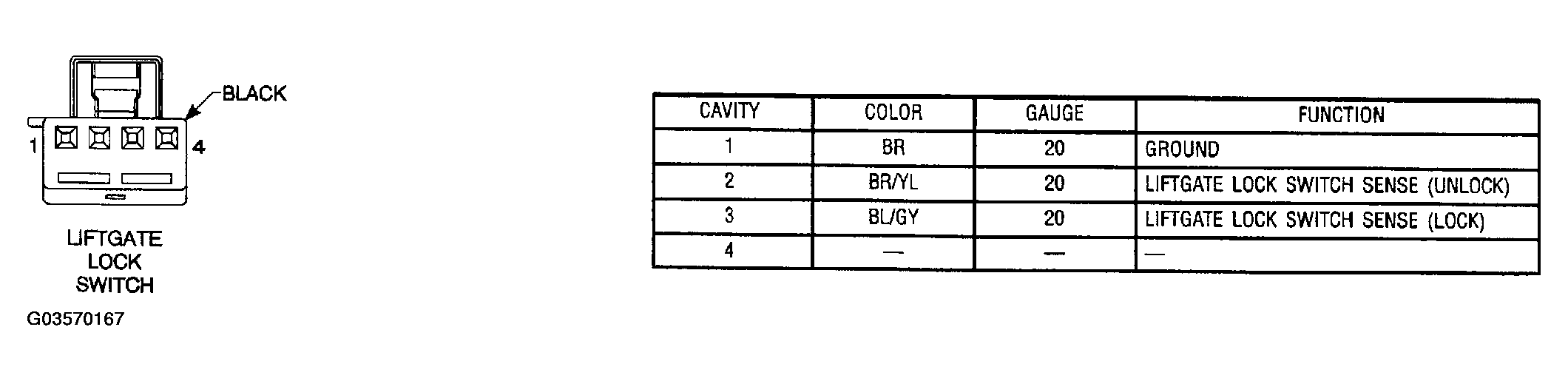

Fig 1: Liftgate Lock Switch Connector End View

G03570167

Courtesy of DAIMLERCHRYSLER CORP.
