Left Side Impact Sensor Connector End View

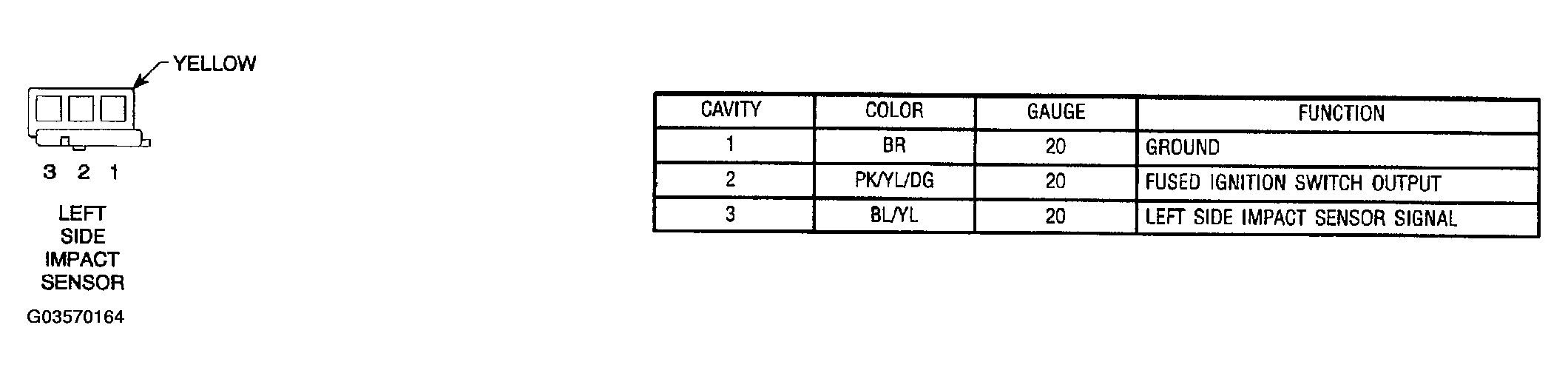

Fig 1: Left Side Impact Sensor Connector End View

G03570164

Courtesy of DAIMLERCHRYSLER CORP.
