Central Locking Pump Module/ Security System Module Connector End View (C3)

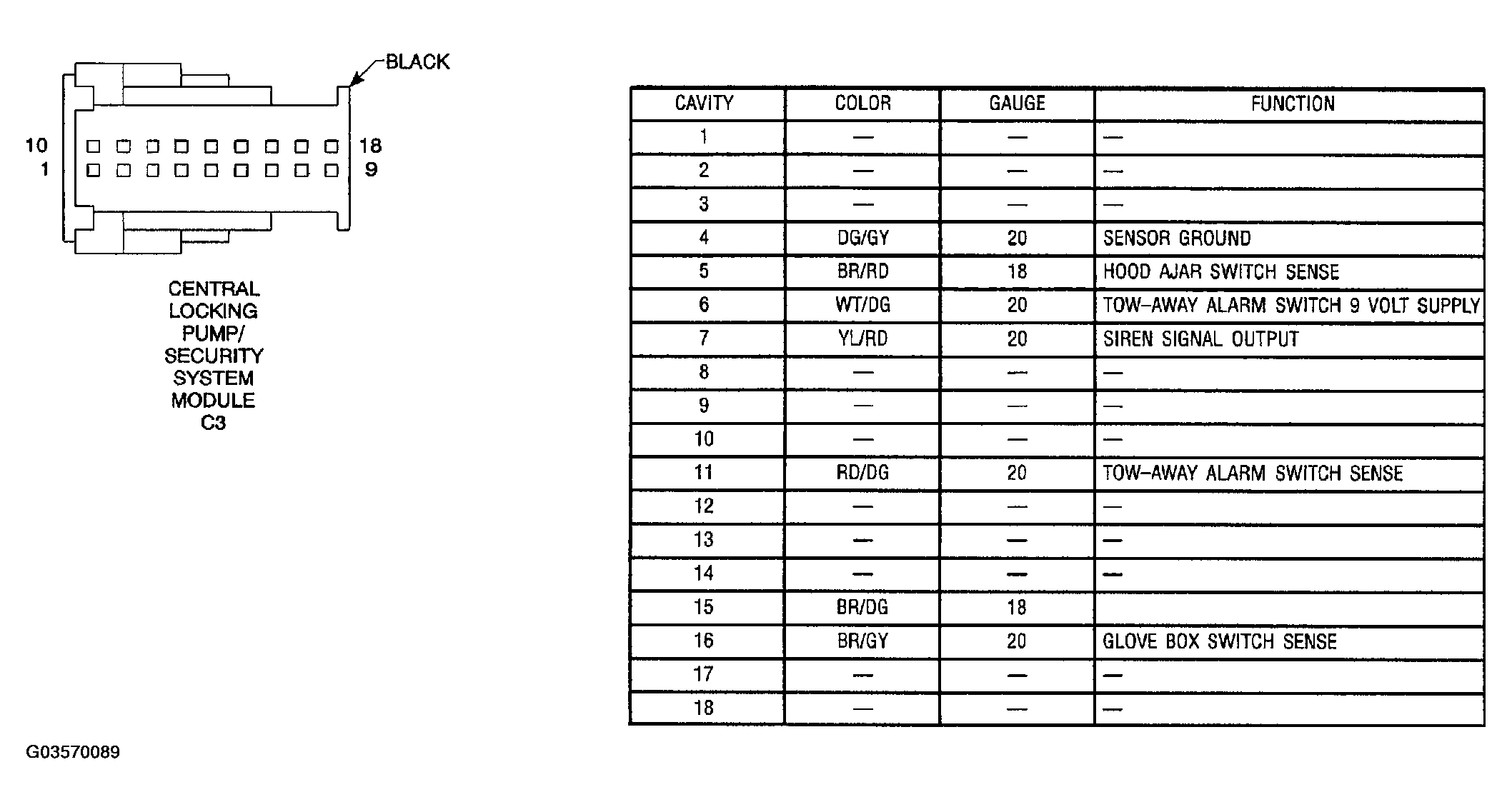

Fig 1: Central Locking Pump Module/ Security System Module Connector End View (C3)

G03570089

Courtesy of DAIMLERCHRYSLER CORP.
