Inline Connector End View (C229)

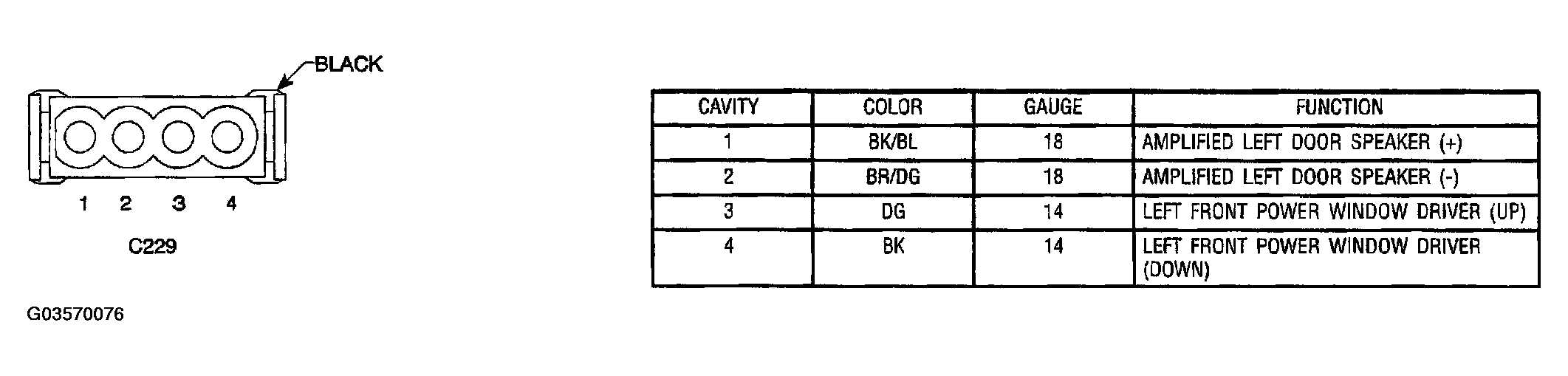

Fig 1: Inline Connector End View (C229)

G03570076

Courtesy of DAIMLERCHRYSLER CORP.

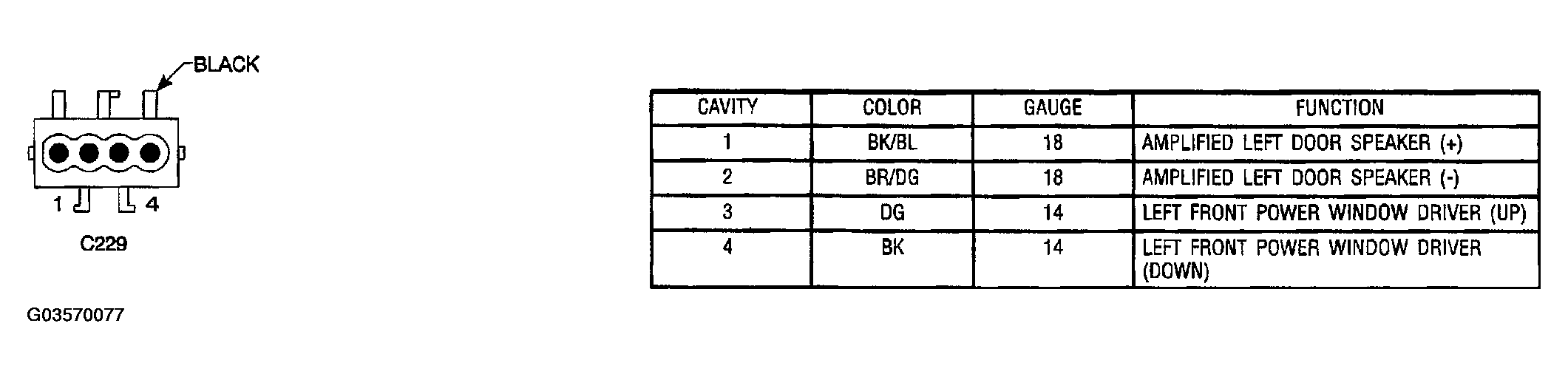

Fig 1: Inline Connector End View (C229)

G03570077

Courtesy of DAIMLERCHRYSLER CORP.
