Inline Connector End View (C223)

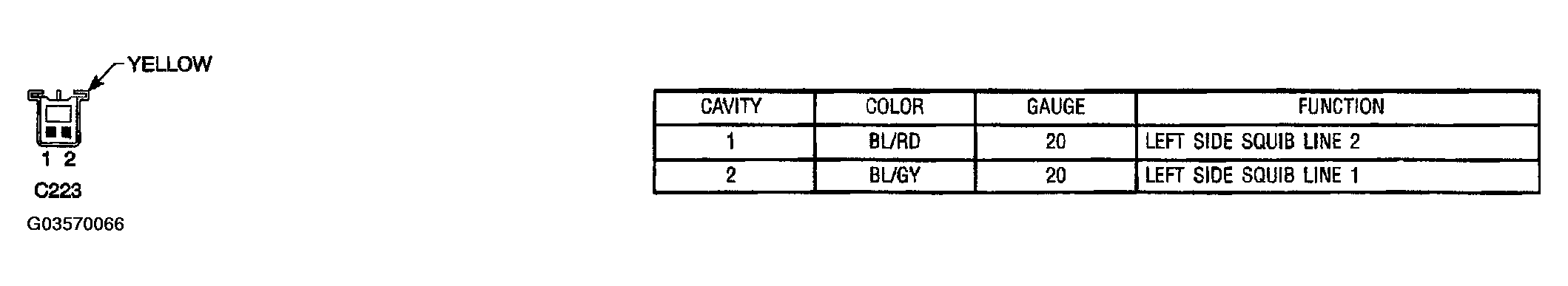

Fig 1: Inline Connector End View (C223)

G03570066

Courtesy of DAIMLERCHRYSLER CORP.

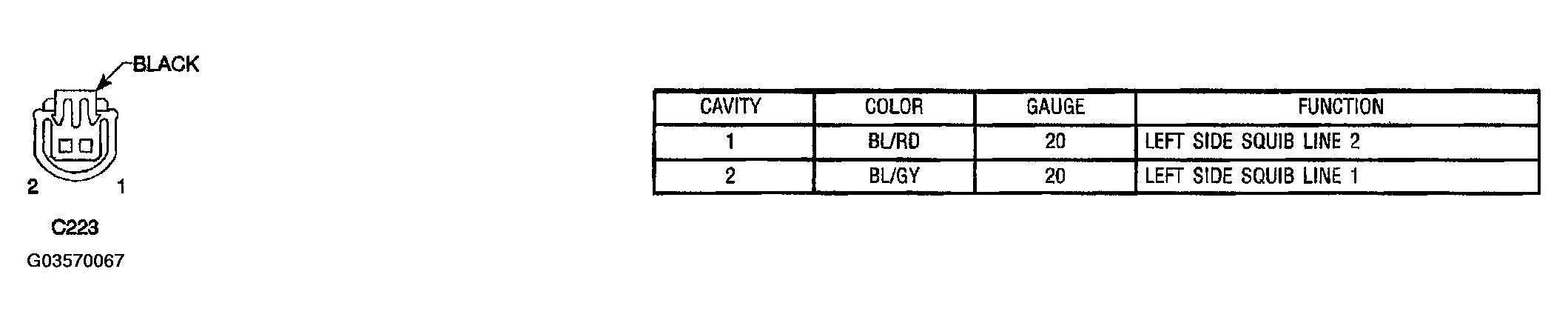

Fig 1: Inline Connector End View (C223)

G03570067

Courtesy of DAIMLERCHRYSLER CORP.
