Right Front Wheel Speed Sensor / Brake Pad Wear Sensor Connector End View

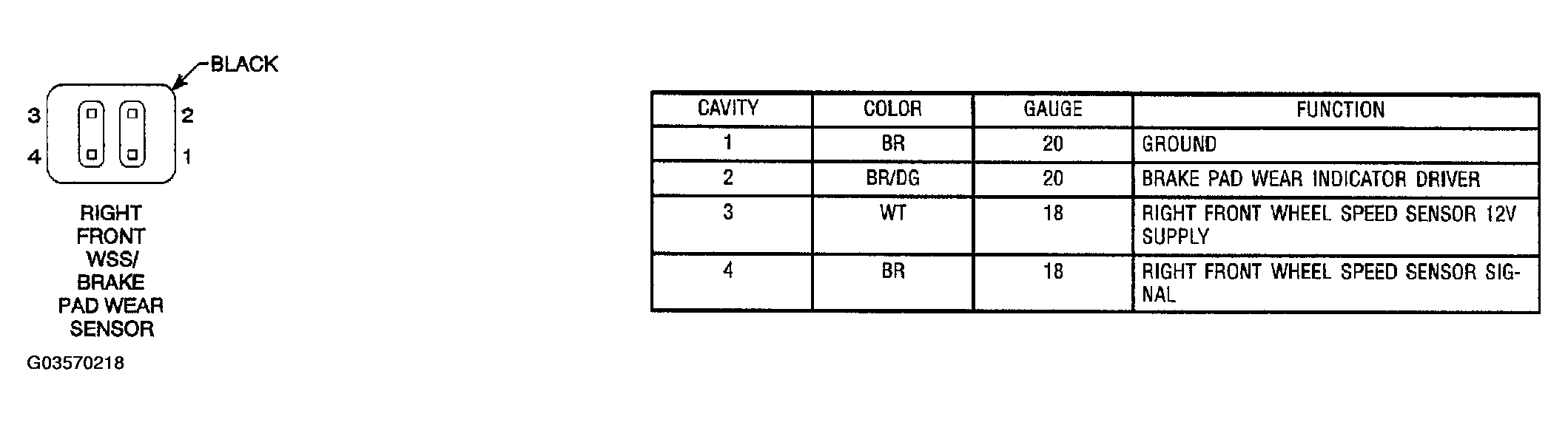

Fig 1: Right Front Wheel Speed Sensor / Brake Pad Wear Sensor Connector End View

G03570218

Courtesy of DAIMLERCHRYSLER CORP.
