Junction Block C10 Connector End View

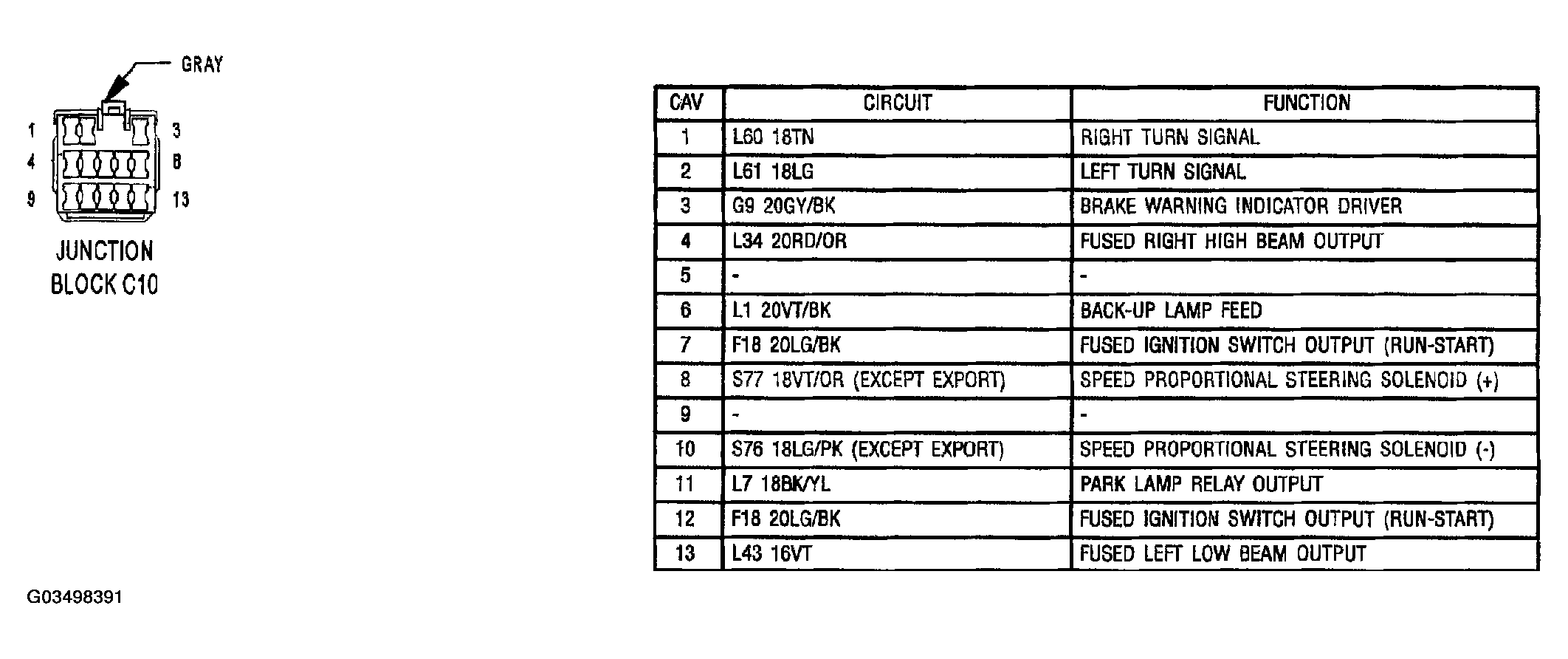

Fig 1: Junction Block Connector End View (C10)

G03498391

Courtesy of DAIMLERCHRYSLER CORP.
