Right Power Mirror Connector End View

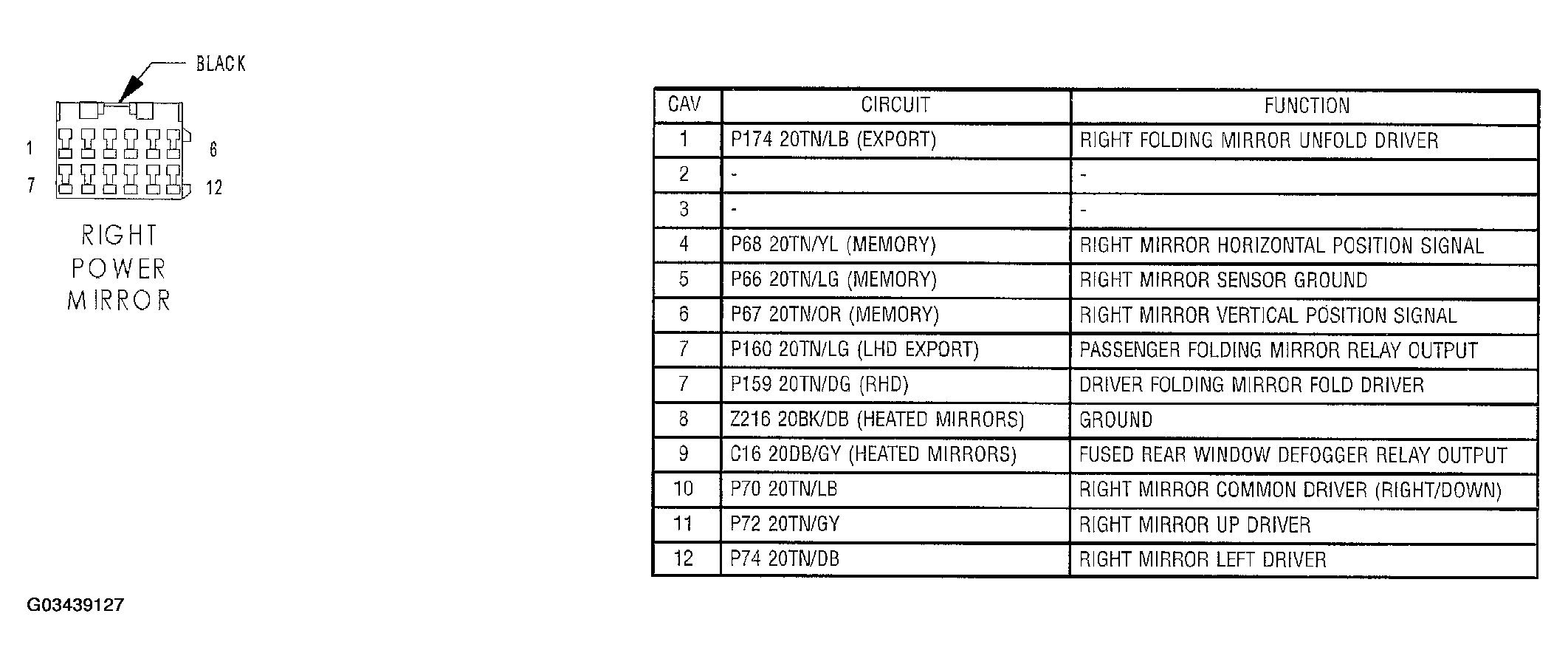

Fig 1: Right Power Mirror Connector End View

G03439127

Courtesy of DAIMLERCHRYSLER CORP.
