Rear Blower Front Control Zone Manual Temperature Control Switch 3 Connector End View

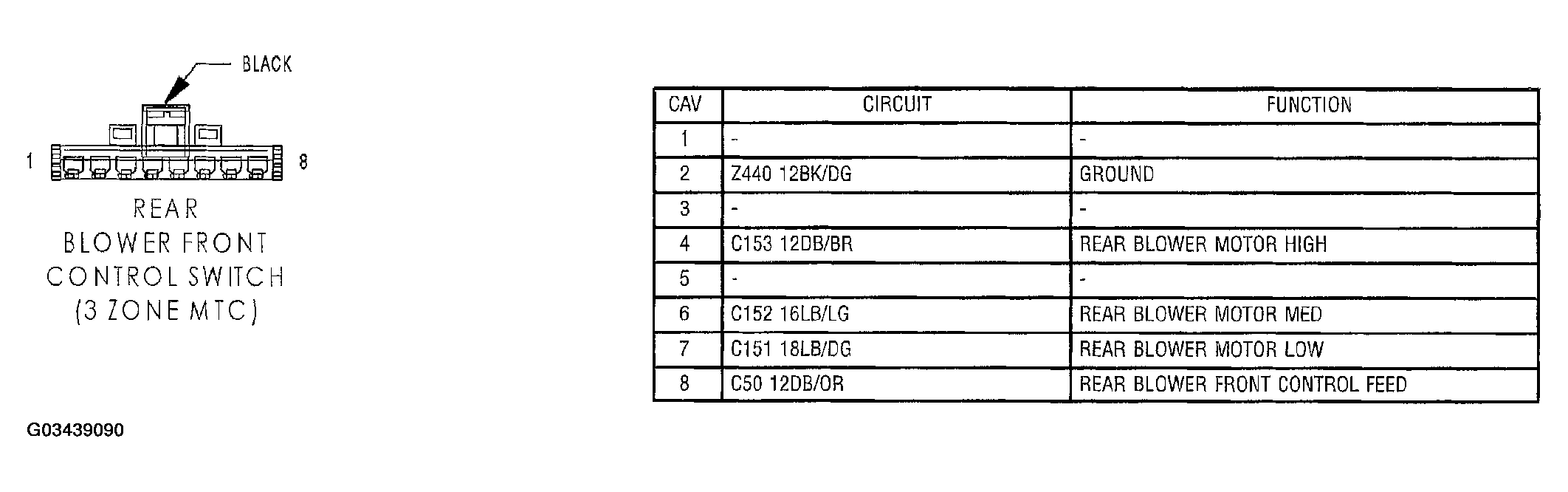

Fig 1: Rear Blower Front Control Zone Manual Temperature Control Switch 3 Connector End View
G03439090Courtesy of DAIMLERCHRYSLER CORP.
