Power Liftgate Motor Connector End View

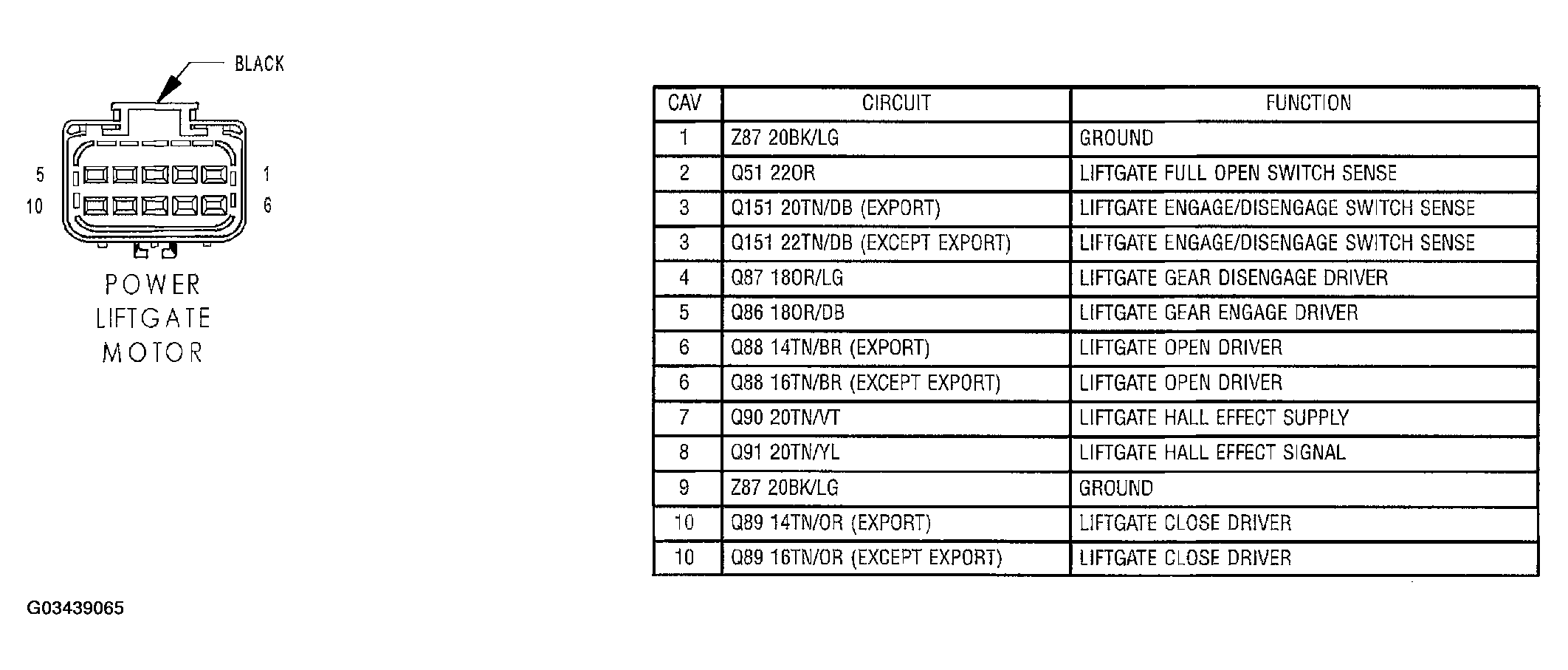

Fig 1: Power Liftgate Motor Connector End View

G03439065

Courtesy of DAIMLERCHRYSLER CORP.
