Mass Air Flow Sensor (Diesel) Connector End View

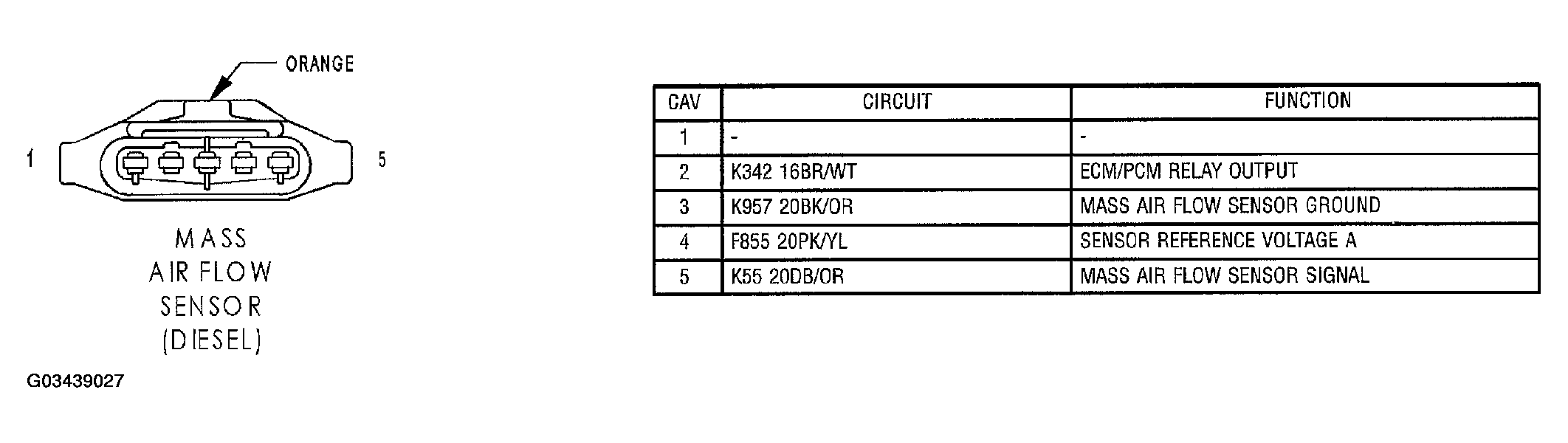

Fig 1: Mass Air Flow Sensor (Diesel) Connector End View

G03439027

Courtesy of DAIMLERCHRYSLER CORP.
