Memory Seat/Mirror Module Connector End View (C1)

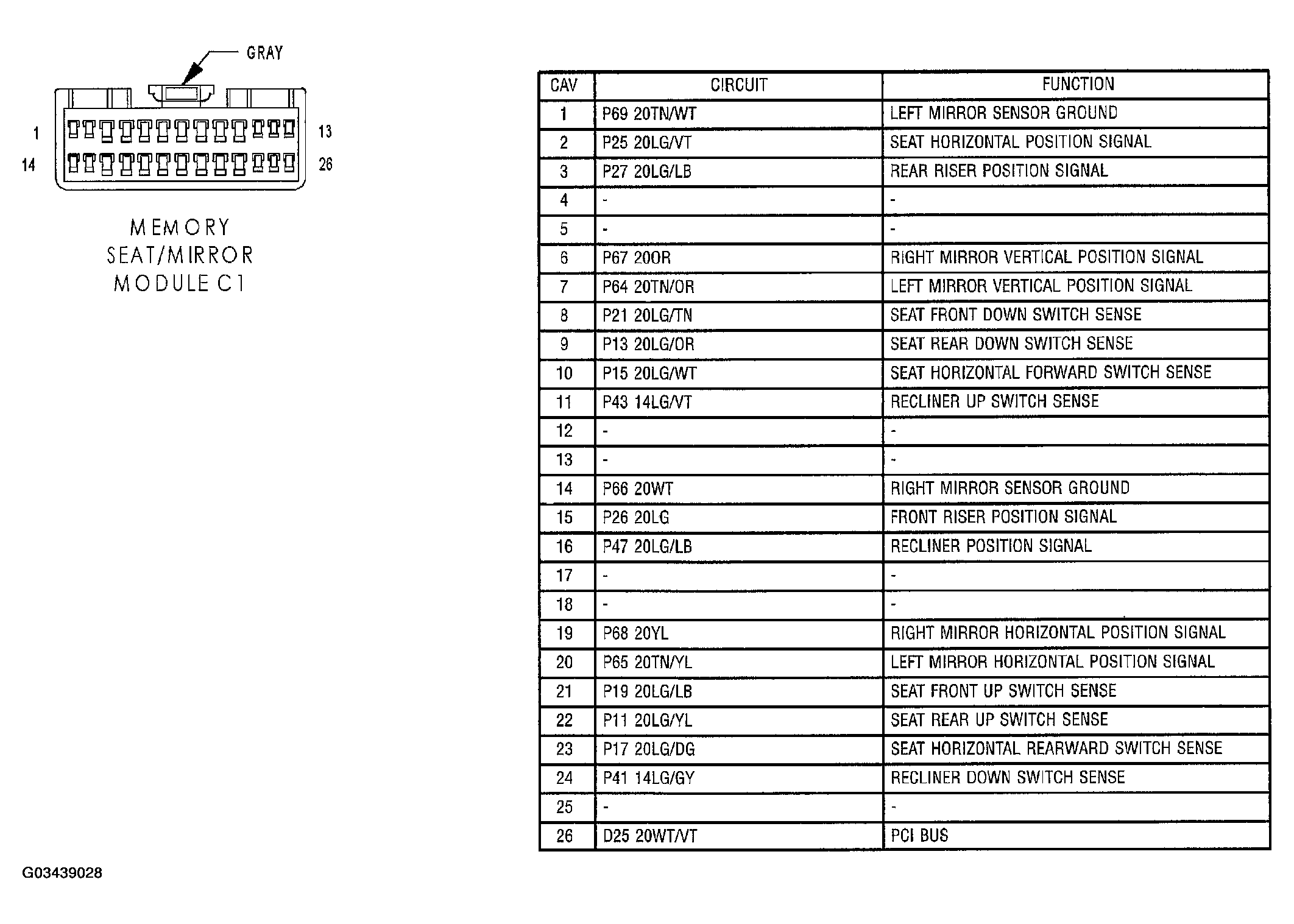

Fig 1: Memory Seat/Mirror Module Connector End View (C1)

G03439028

Courtesy of DAIMLERCHRYSLER CORP.
