Integrated Power Module Connector End View (C8)

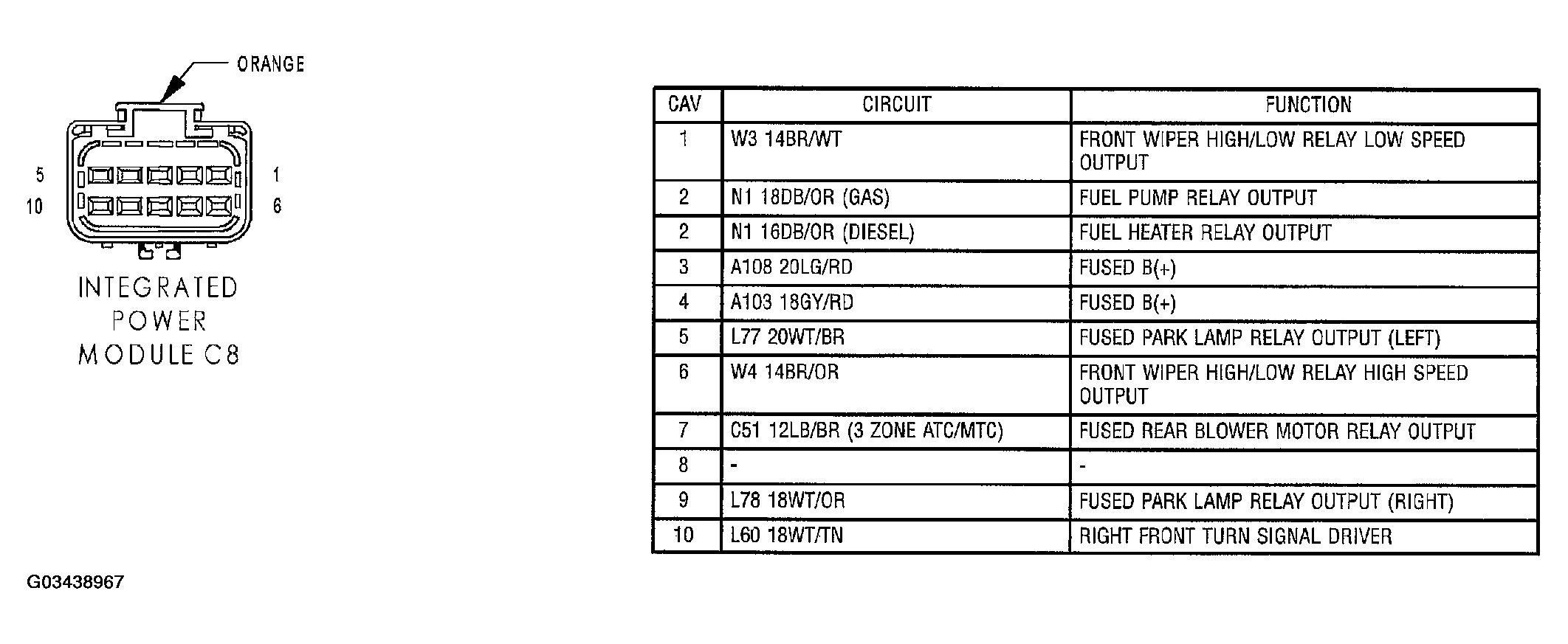

Fig 1: Integrated Power Module Connector End View (C8)

G03438967

Courtesy of DAIMLERCHRYSLER CORP.
