Rear 3 Zone Blower Motor Power Module (Automatic Temperature Control) Connector End View (C1)

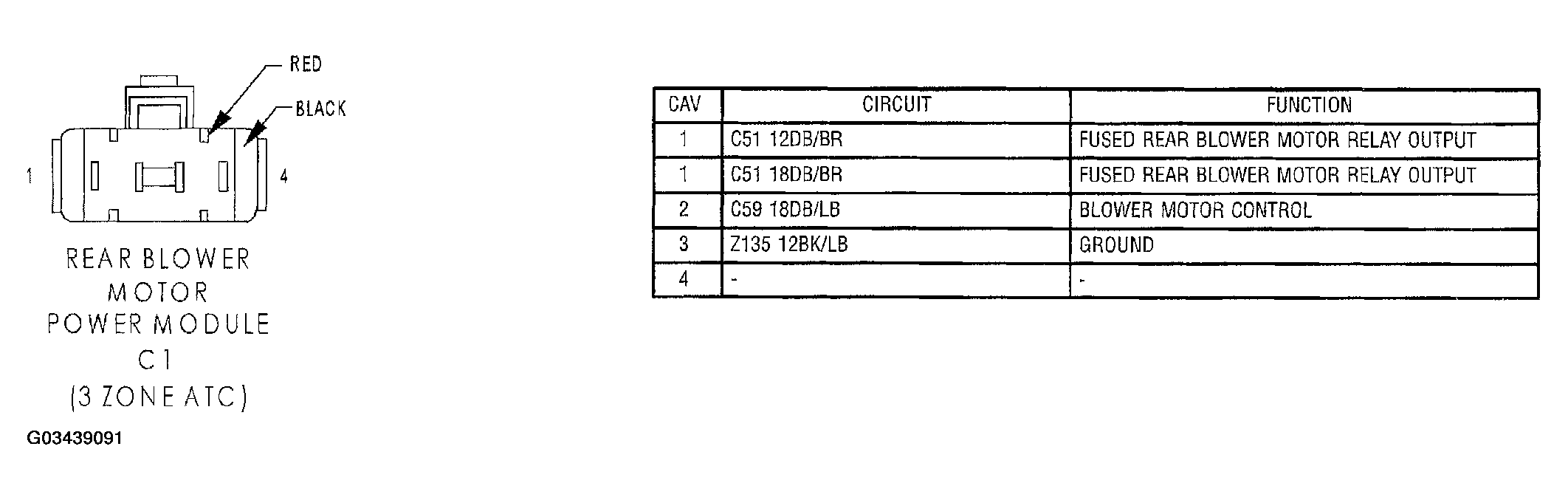

Fig 1: Rear 3 Zone Blower Motor Power Module (Automatic Temperature Control) Connector End View (C1)
G03439091Courtesy of DAIMLERCHRYSLER CORP.
