Heater Control (Manual Temperature Control) Connector End View (C1)

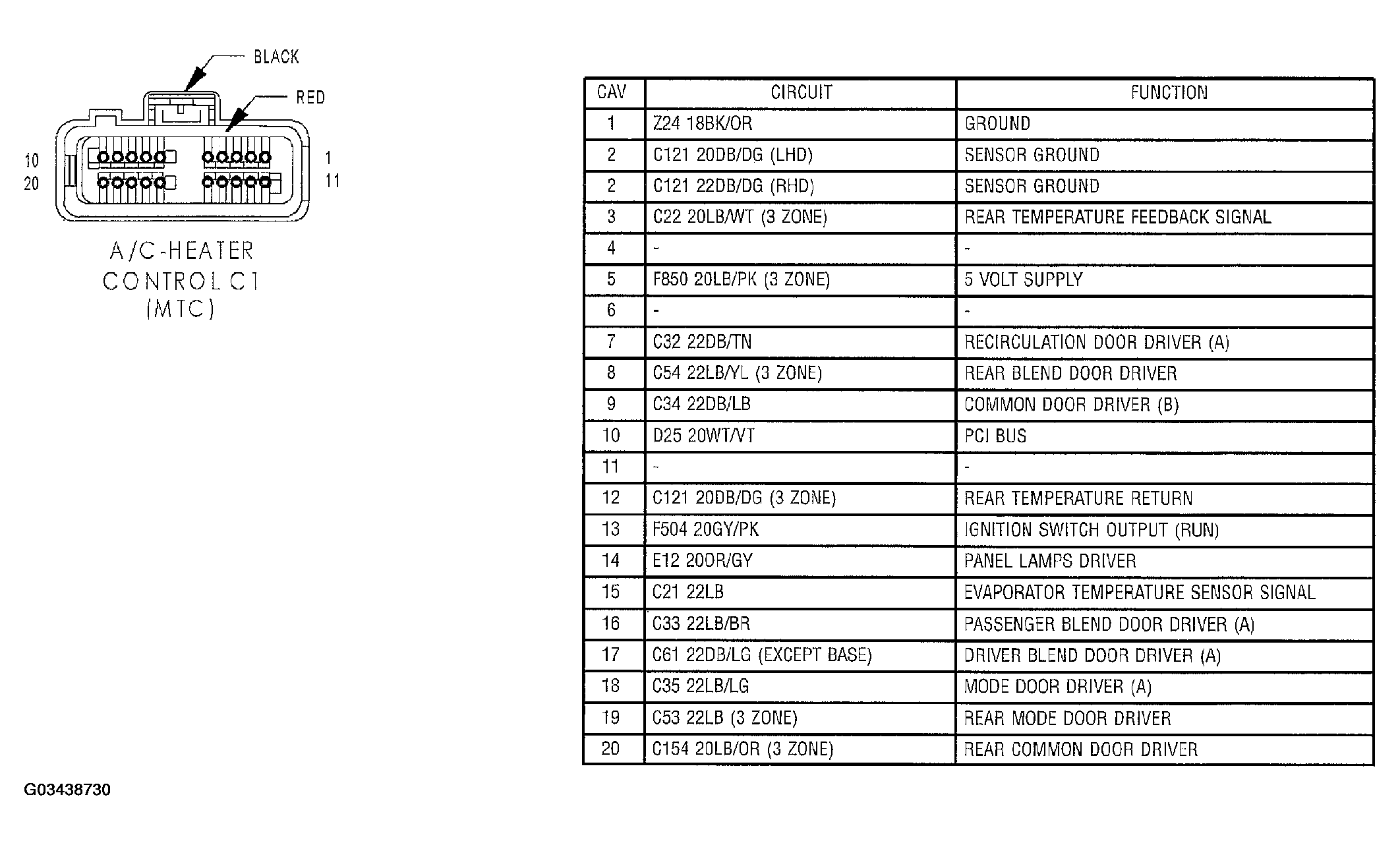

Fig 1: Heater Control (Manual Temperature Control) Connector End View (C1)

G03438730

Courtesy of DAIMLERCHRYSLER CORP.
