Front Reading Lamps / Switch Connector End View

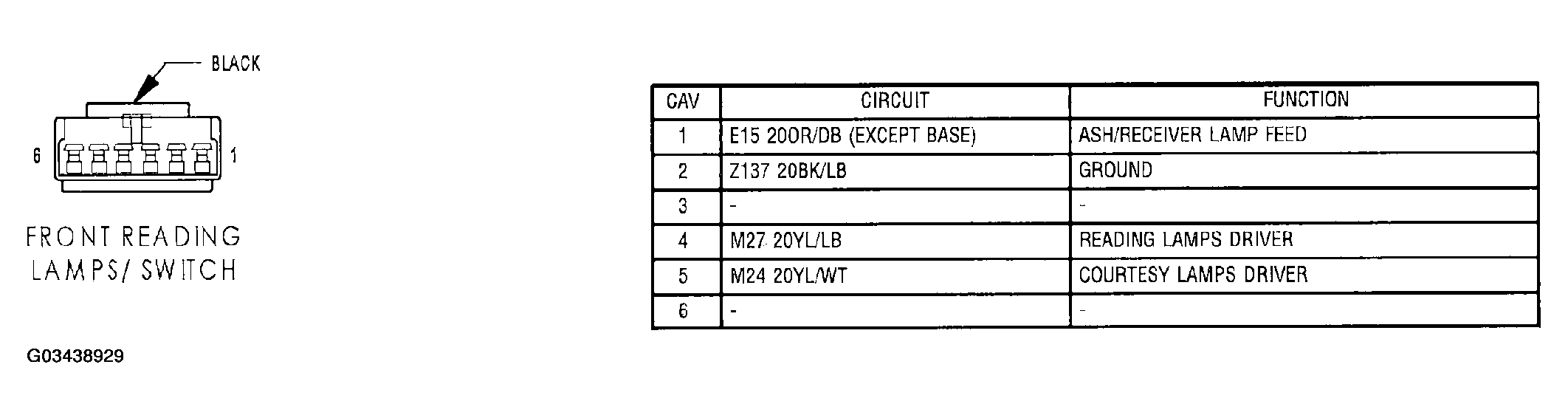

Fig 1: Front Reading Lamps / Switch Connector End View

G03438929

Courtesy of DAIMLERCHRYSLER CORP.
