Powertrain Control Module (SBEC) Connector End View (C2)

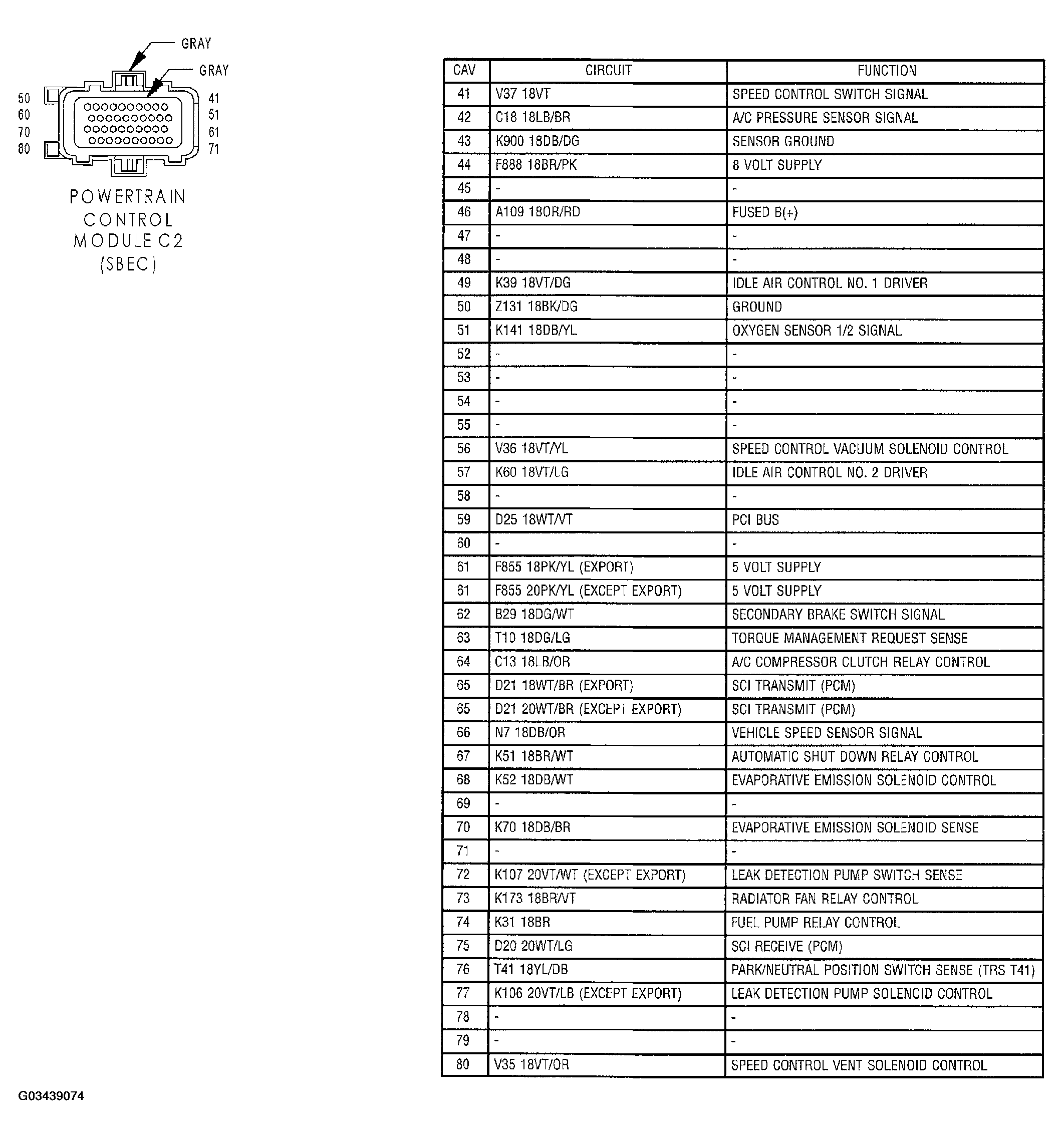

Fig 1: Powertrain Control Module (SBEC) Connector End View (C2)

G03439074

Courtesy of DAIMLERCHRYSLER CORP.
