Passenger Power Window Switch Connector End View

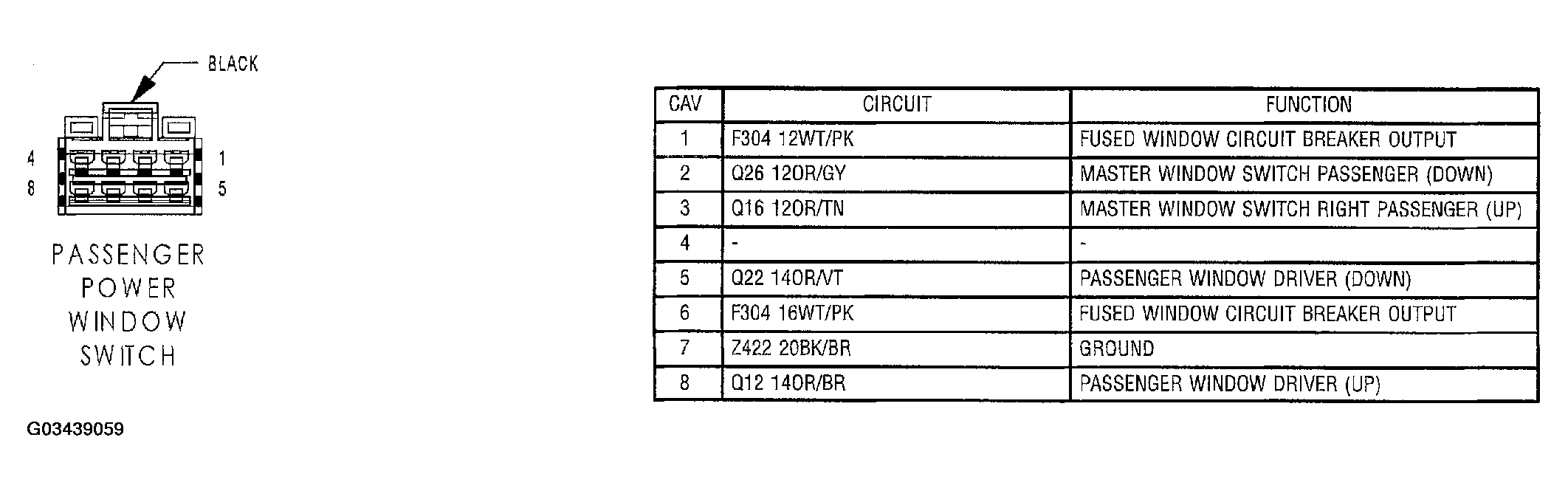

Fig 1: Passenger Power Window Switch Connector End View

G03439059

Courtesy of DAIMLERCHRYSLER CORP.
