Driver Heated Seat Module Connector End View (C3)

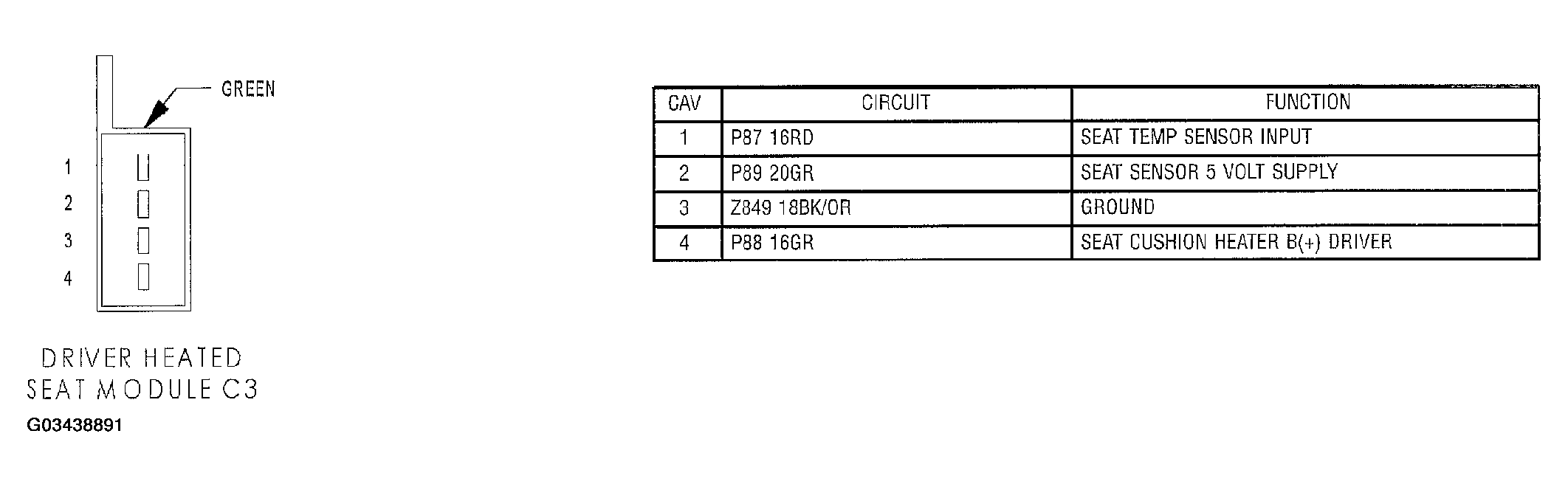

Fig 1: Driver Heated Seat Module Connector End View (C3)

G03438891

Courtesy of DAIMLERCHRYSLER CORP.
