Front Blower Module (Automatic Temperature Control) Connector End View (C2)

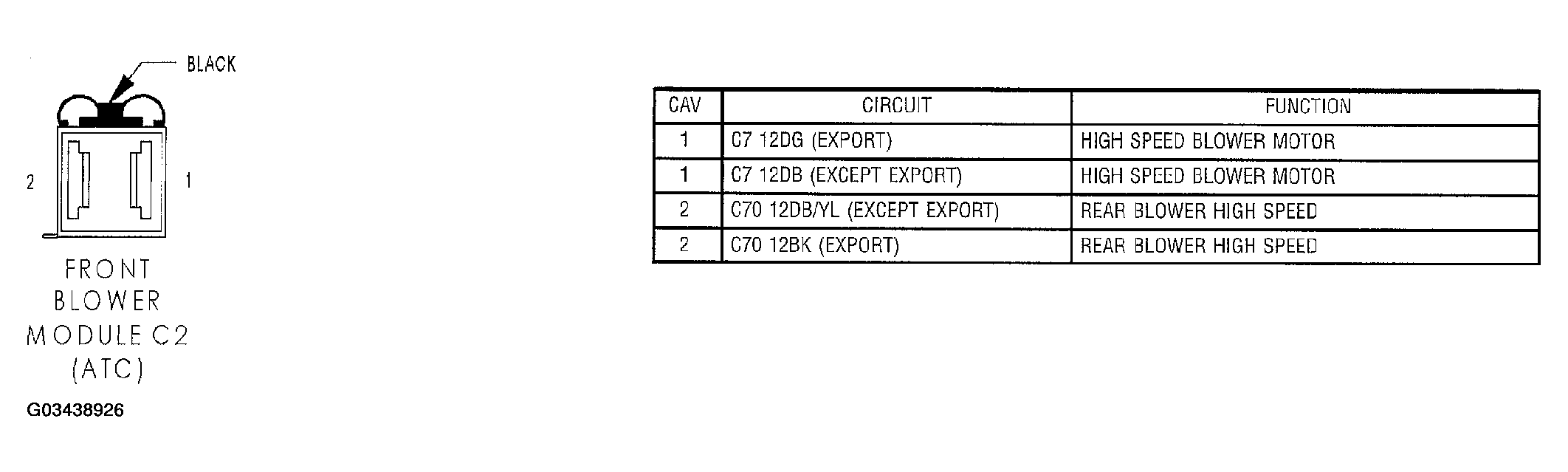

Fig 1: Front Blower Module (Automatic Temperature Control) Connector End View (C2)

G03438926

Courtesy of DAIMLERCHRYSLER CORP.
