Actuator Test Specifications
ACTUATOR TEST SPECIFICATIONS
| NO. | ITEM | PARTS TO BE ACTIVATED |
|---|---|---|
| 01 | ABS solenoid valve for front-left wheel | Solenoid valves and pump motor in the hydraulic unit (simple inspection mode) |
| 02 | ABS solenoid valve for front-right wheel | |
| 03 | ABS solenoid valve for rear-left wheel | |
| 04 | ABS solenoid valve for rear-right wheel | |

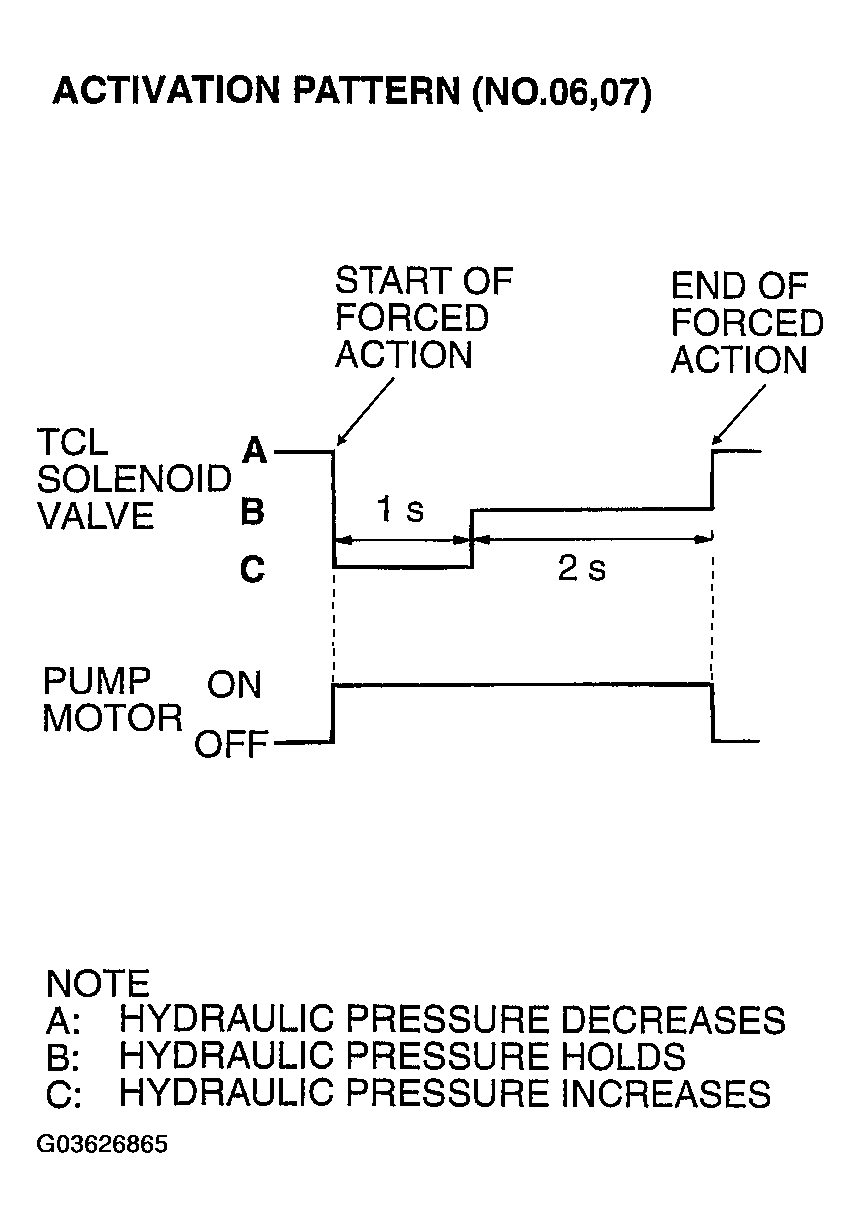

| 06 | TCL solenoid valve for front-right wheel | TCL valves and pump motor in the hydraulic unit (simple inspection mode) |
| 07 | TCL solenoid valve for front-left wheel | |
| 12 | Pump motor | Activate the pump motor for two seconds. |
