Trunk Lid Opener Function Circuit

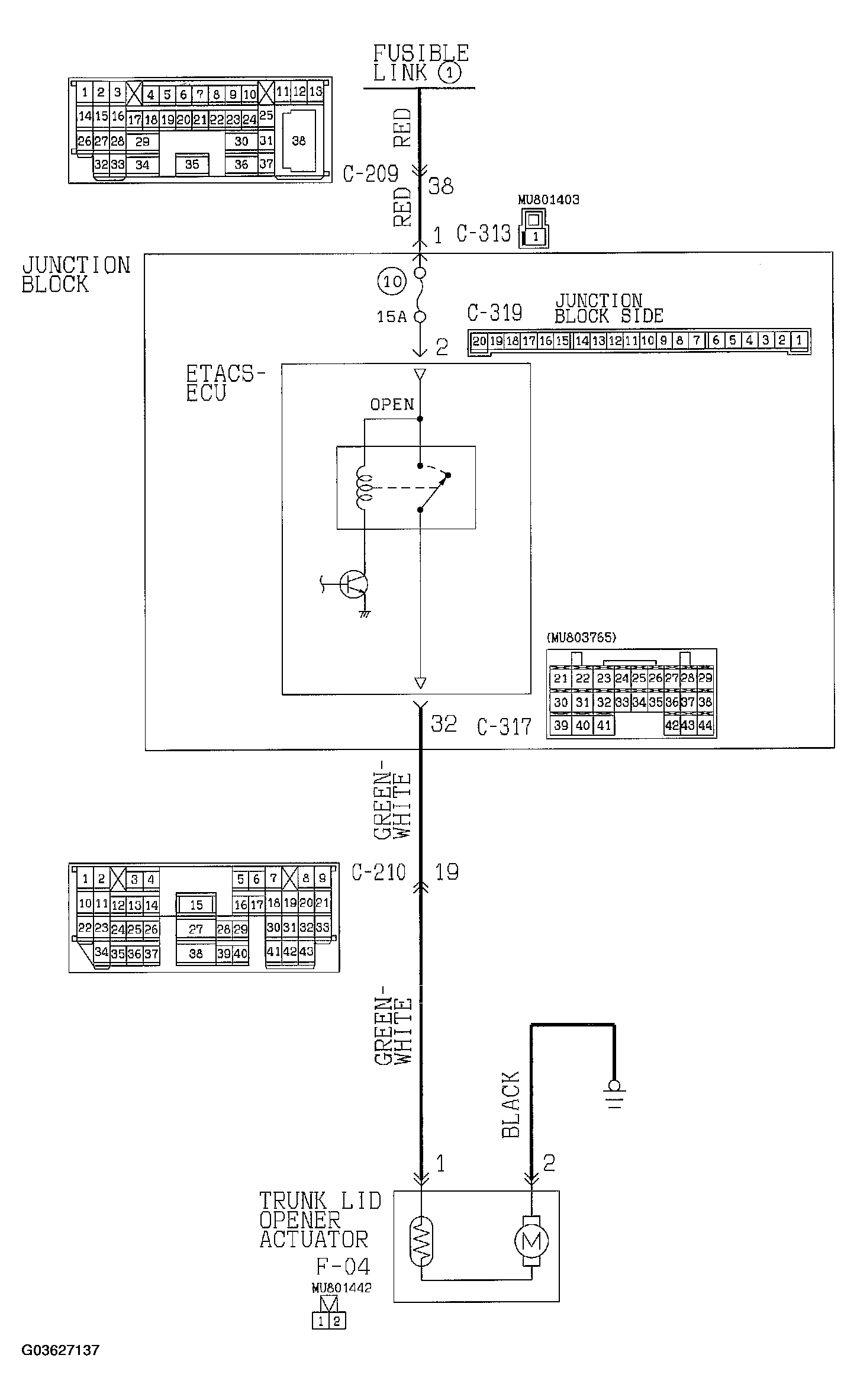

Fig 1: Identifying Trunk Lid Opener Function Circuit

G03627137

Courtesy of DAIMLERCHRYSLER CORP.

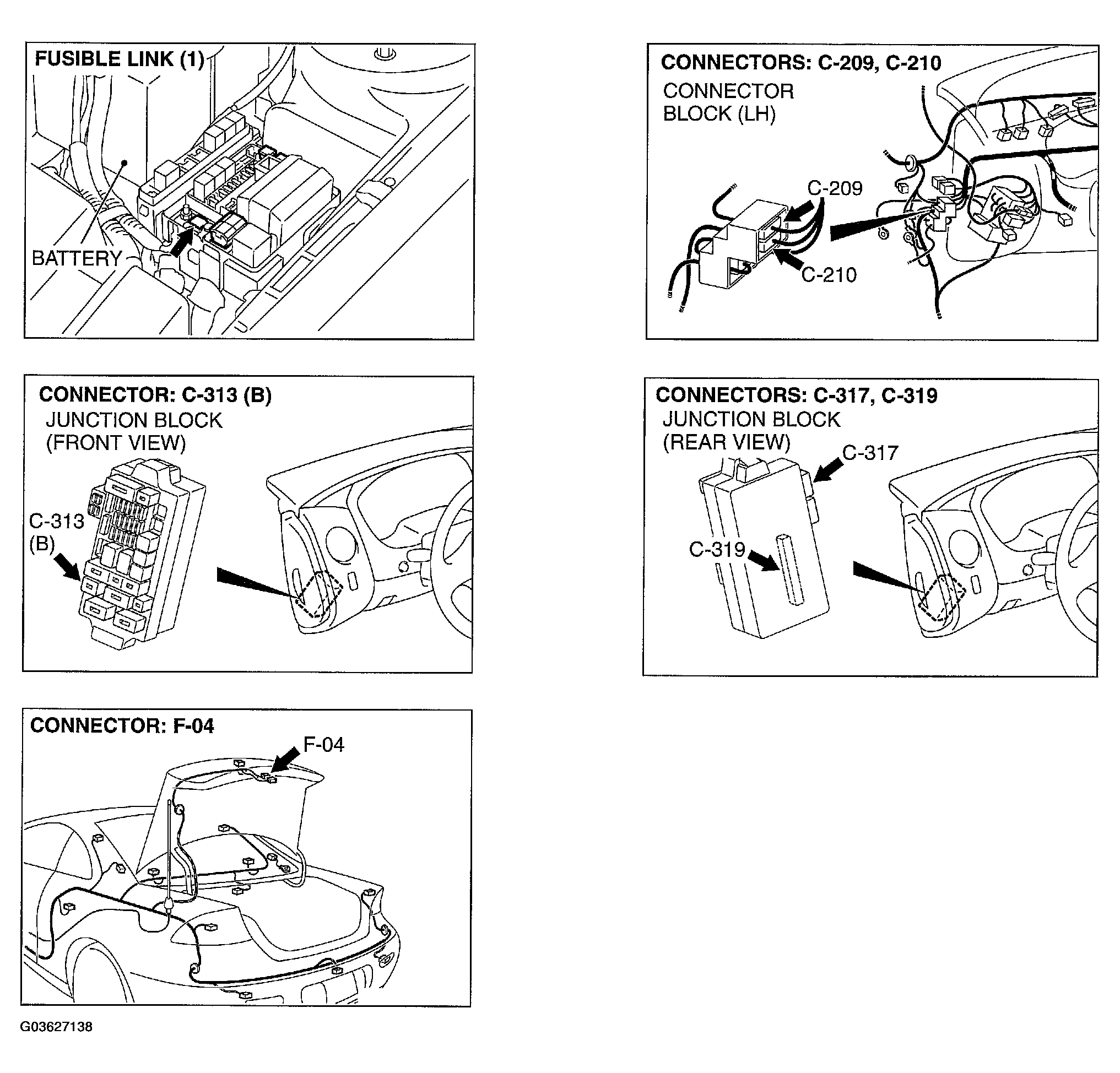

Fig 2: Identifying Connectors

G03627138

Courtesy of DAIMLERCHRYSLER CORP.
