Transmission Temperature Sensor

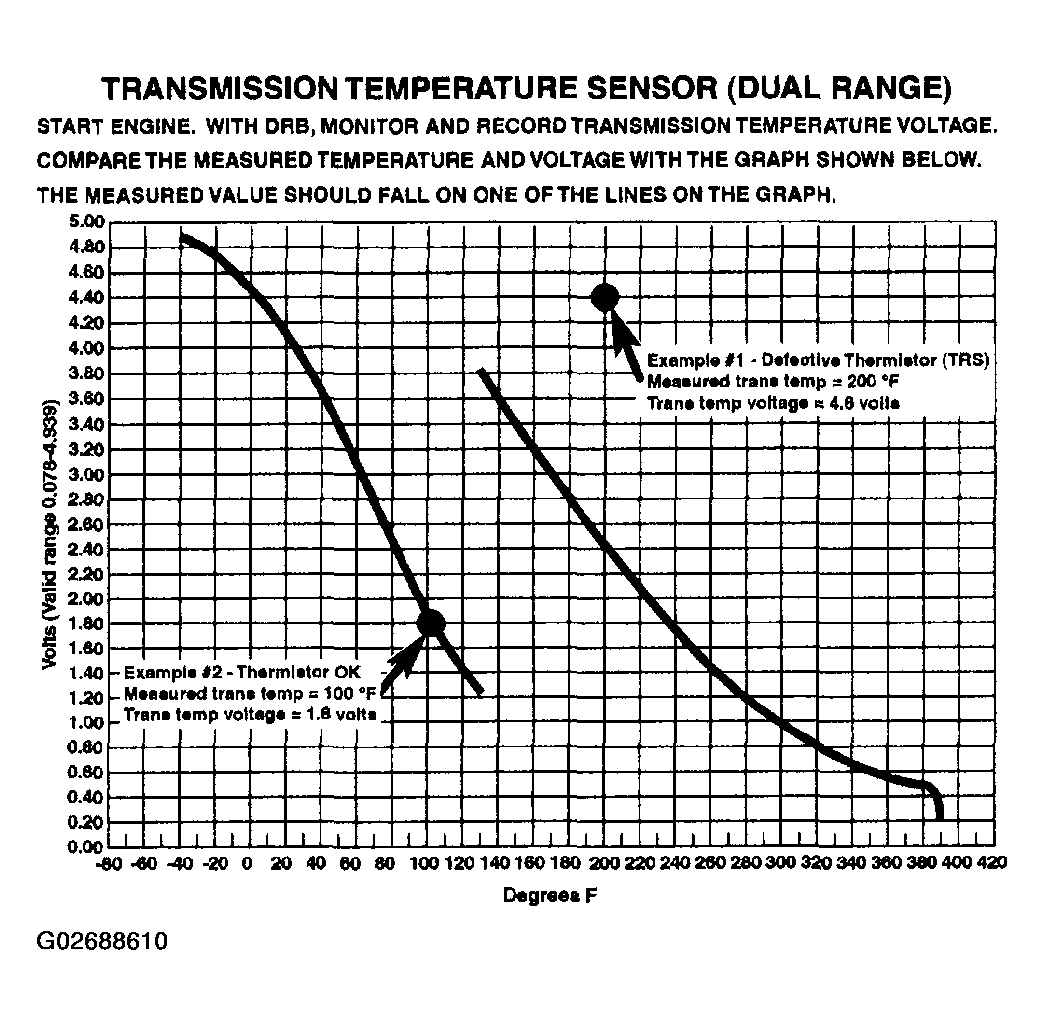

Fig 1: Transmission Temperature Sensor (Dual Range) Graph

G02688610

Courtesy of DAIMLERCHRYSLER CORP.
