DTC 14: Stoplight Switch System: Notes

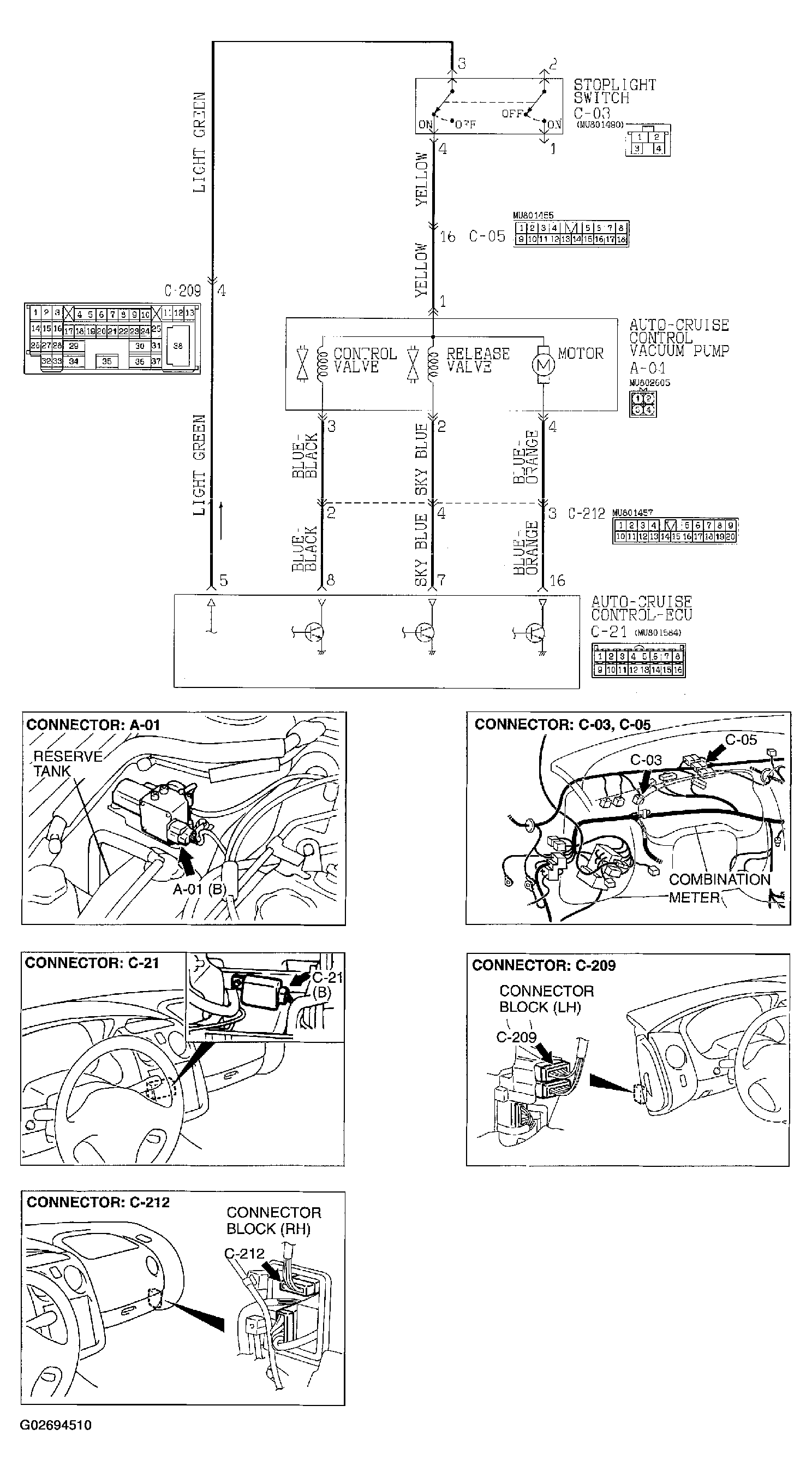

Fig 1: Stoplight Switch System Circuit Diagram & Connector Identification

G02694510

Courtesy of DAIMLERCHRYSLER CORP.
