Diagnostic Result Display Method When Using The Auto-Cruise Control Indicator Light: Notes

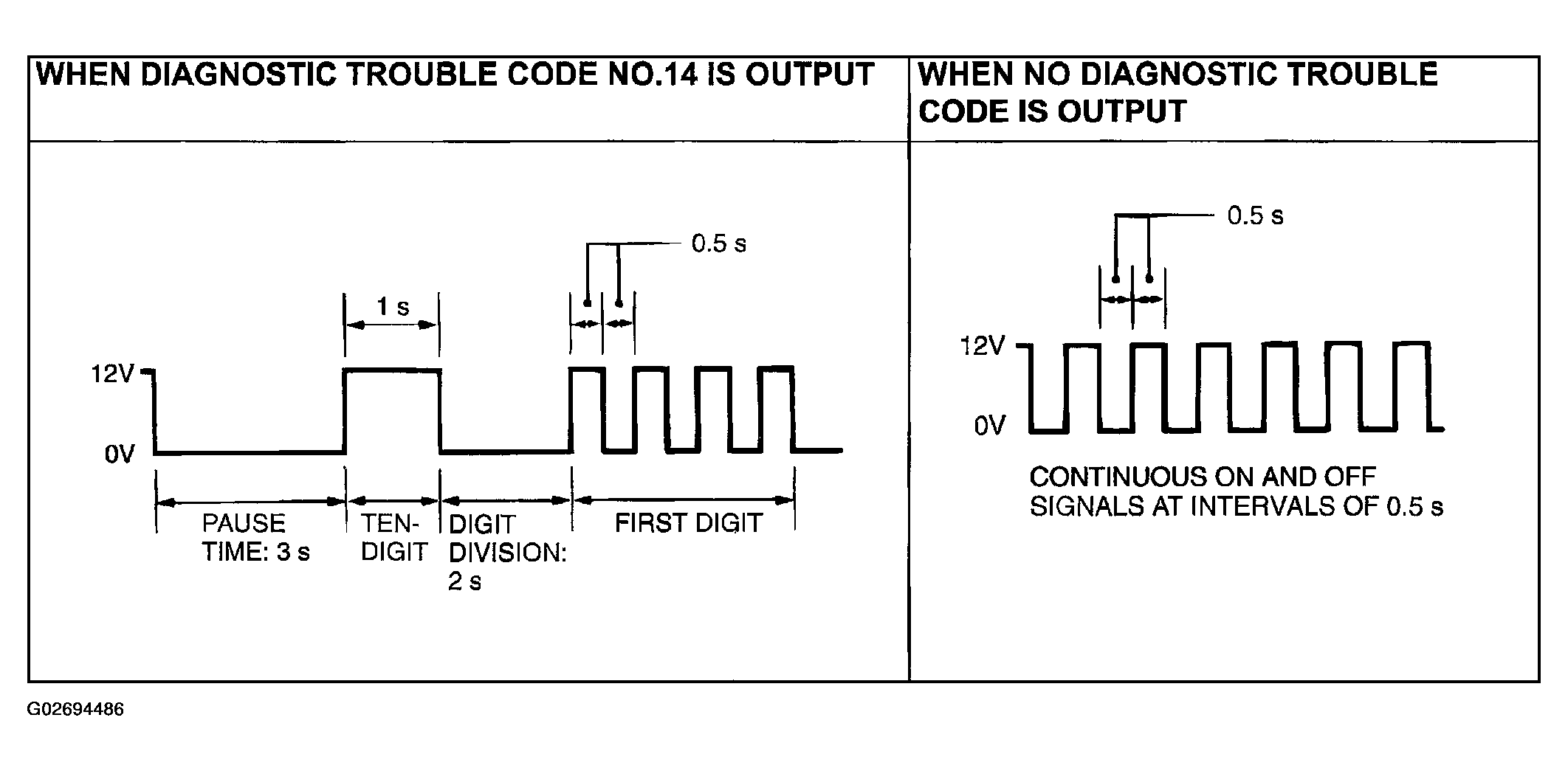

Fig 1: Identifying Diagnostic Result Display Using Auto-Cruise Control Indicator Light
G02694486Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
