Identifying Heated Seat Module - Green 14 Way Connector End View

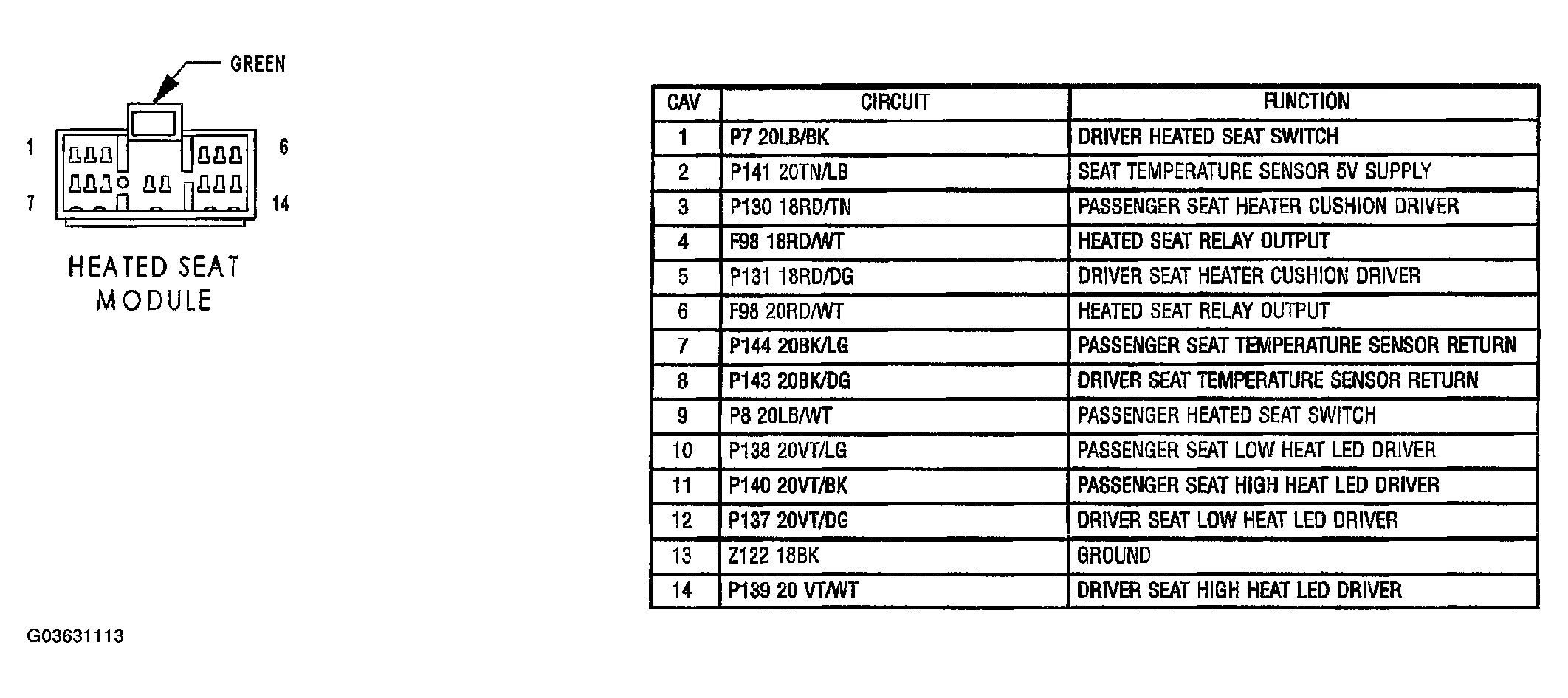

Fig 1: Identifying Heated Seat Module - Green 14 Way Connector End View

G03631113

Courtesy of DAIMLERCHRYSLER CORP.
