Identifying Power Sunroof Module C2 - Black 4 Way Connector End View

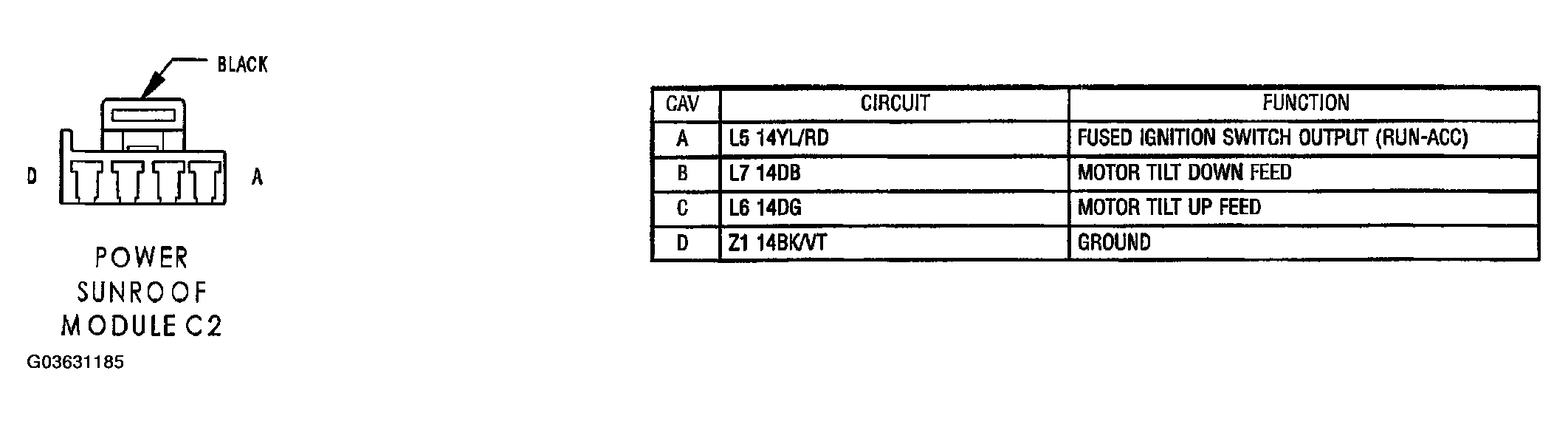

Fig 1: Identifying Power Sunroof Module C2 - Black 4 Way Connector End View

G03631185

Courtesy of DAIMLERCHRYSLER CORP.
