Identifying Output Speed Sensor - Gray 2 Way Connector End View

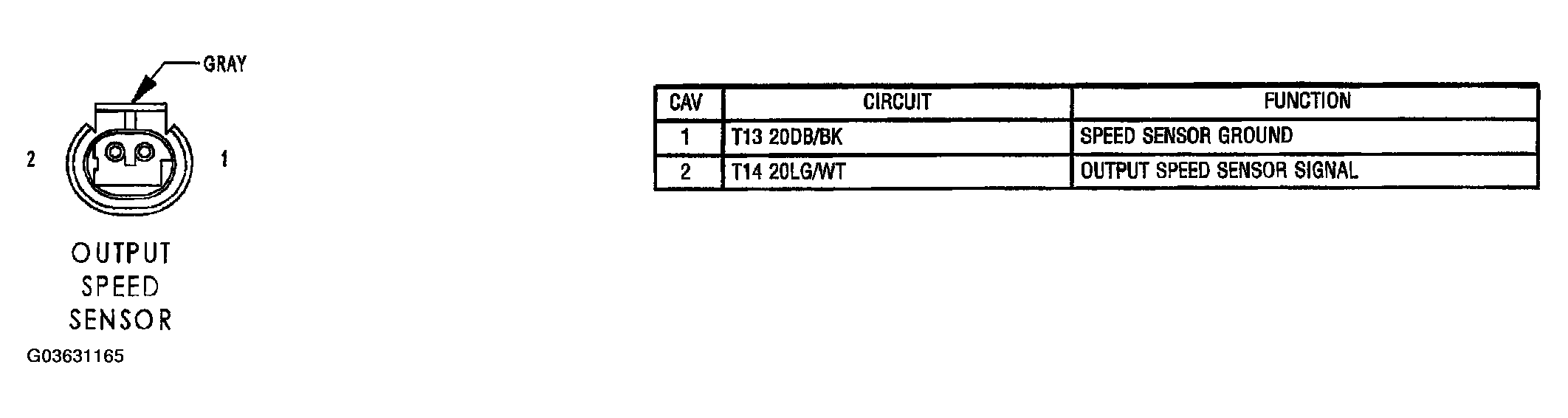

Fig 1: Identifying Output Speed Sensor - Gray 2 Way Connector End View
G03631165Courtesy of DAIMLERCHRYSLER CORP.
