Identifying A/C Heater Control Switch - Gray 7 Way Connector End View

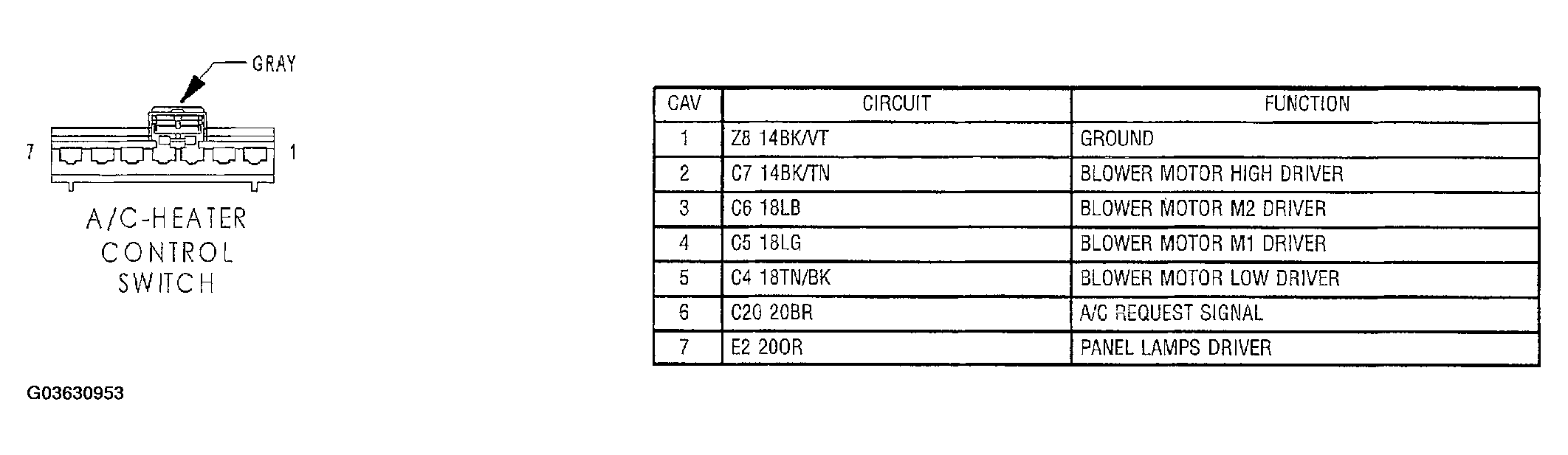

Fig 1: Identifying A/C Heater Control Switch - Gray 7 Way Connector End View

G03630953

Courtesy of DAIMLERCHRYSLER CORP.
